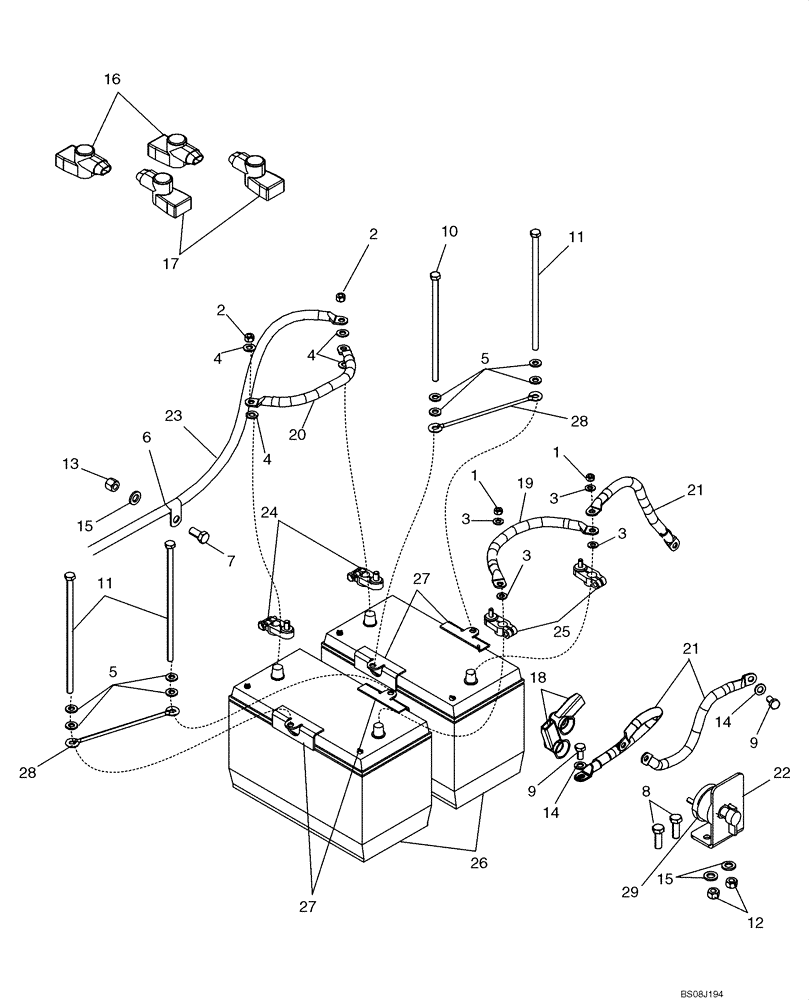

Запчасти Case 650L (55.201.03) - BATTERY, DUAL - CANOPY, ROPS AND CAB (55) - ELECTRICAL SYSTEMS

1

425-105

NUT,5/16"-18, G5

2шт.

2

425-106

NUT,3/8"-16, Cl 5

2шт.

3

495-11034

WASHER,5/16", SAE

4шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

6

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

5шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

8

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

10

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

11

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

3шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

16

87480920

PROTECTIVE COVER

ELECTRIC CABLE Red

2шт.

17

87481024

PROTECTIVE COVER

GROUND CABLE Black

2шт.

18

87620402

BOOT

2шт.

19

87685900

NEG BATTERY CABLE

Battery To Battery

1шт.

20

87685901

CABLE

Battery To Battery POSITIVE

1шт.

21

87687909

CABLE

Disconnect To Ground

3шт.

22

87688616

MOUNT

Master Disconnect

1шт.

23

87694554

CABLE

Battery Positive

1шт.

24

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

3/8 Stud Positive

2шт.

25

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

5/16 Stud Negative

2шт.

26

BMF31E

DRY BATTERY

(BMF31EW Wet Battery)

2шт.

27

D125079

BRACKET

Angle Battery Hod Down

4шт.

28

D55561

RETAINER

Battery Hold Down

2шт.

29

87409316

SWITCH

Switch Master Disconnect

1шт.
