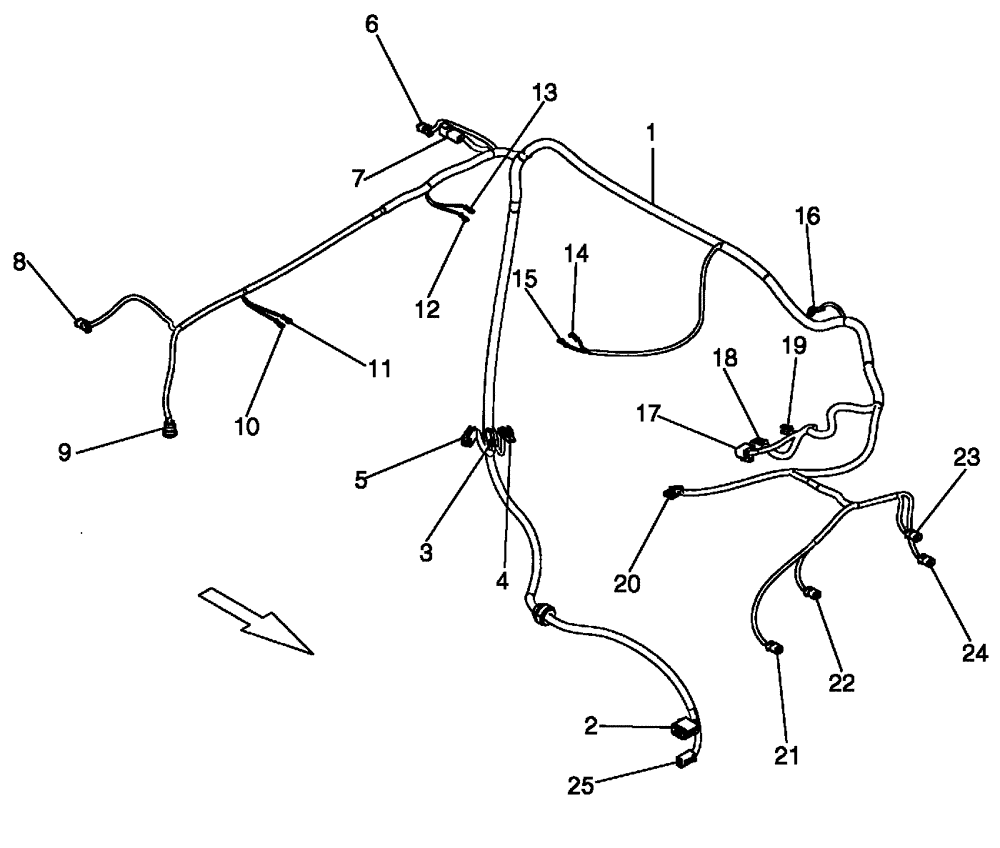

Запчасти Case 650L (55.100.06[01]) - HARNESS - CAB LIGHTS (55) - ELECTRICAL SYSTEMS

1

87723343

HARNESS

Cab Lights

1шт.

2

225391C1

WEDGE

CONNECTOR, To Main Harness

1шт.

3

NSS

NOT SOLD SEPARAT

CONNECTOR, To HVAC Unit 2

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

Low Pressure Switch

1шт.

5

225352C1

WEDGE

To HVAC Unit

1шт.

6

225317C1

WEDGE

Left Rear Worklight

1шт.

7

NSS

NOT SOLD SEPARAT

Condenser

1шт.

8

87702955

ELEC CONNECTOR,Female

Right Rear Worklight

1шт.

9

87703295

CONTACT HOUSING,4 Pole

Rear Wiper

1шт.

10

87723453

ELEC. TERMINAL PIN,18 - 14 SAE

Right Speaker (Negative)

1шт.

11

87723453

ELEC. TERMINAL PIN,18 - 14 SAE

Right Speaker (Positive)

1шт.

12

87723453

ELEC. TERMINAL PIN,18 - 14 SAE

Left Spaeker (Positive)

1шт.

13

87723453

ELEC. TERMINAL PIN,18 - 14 SAE

Left Speaker (Negative)

1шт.

14

87723453

ELEC. TERMINAL PIN,18 - 14 SAE

Dome Light (Positive)

1шт.

15

87723453

ELEC. TERMINAL PIN,18 - 14 SAE

Dome Loght (Ground)

1шт.

16

1964718C1

TERMINAL CONNECTOR

Ground

1шт.

17

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

18

475082C1

CONNECTOR,ELECTRIC

Fan Switch

1шт.

19

227375A1

CONNECTOR, ELEC

CONNECTOR Temperature Switch

1шт.

20

411311A1

ELEC CONNECTOR,Female, 14 Pin

Radio

1шт.

21

87702955

ELEC CONNECTOR,Female

Front Right Lower Worklight

1шт.

22

87702955

ELEC CONNECTOR,Female

Front Right Upper Worklight

1шт.

23

87702955

ELEC CONNECTOR,Female

Front Left Upper Worklight

1шт.

24

87702955

ELEC CONNECTOR,Female

Front Left Lower Worklight

1шт.

25

NSS

NOT SOLD SEPARAT

CONNECTOR, To Main Harness 2

1шт.
