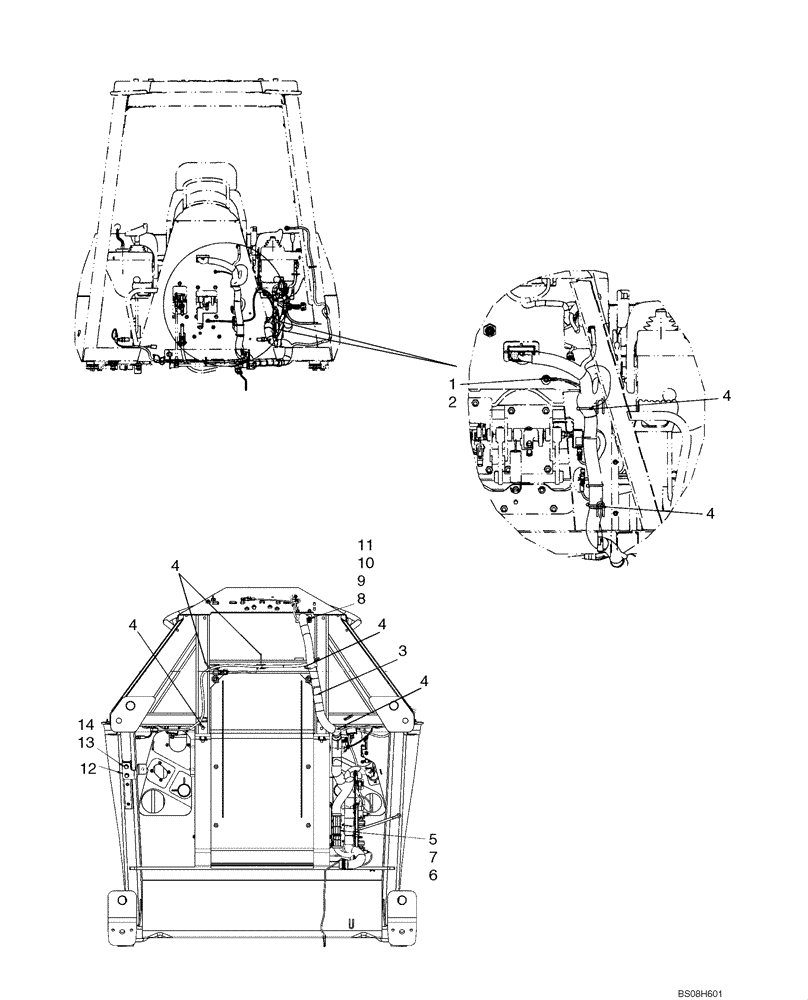

Запчасти Case 650L (55.100.04[04]) - HARNESS, MAIN ROPS - INSTALLATION (55) - ELECTRICAL SYSTEMS

1

514-640

BOLT,Hex, M8 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

2

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.

3

87685390

HARNESS

Main Rops

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

9шт.

5

87313557

CONTROL UNIT

Mirco Controller

1шт.

87313557R

REMAN ELECT CONTROL

650L - TIER 3 (HYDRO) (2/09-)

1шт.

87313557C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

87615105

SEAL

Electrical Close Off Plate

1шт.

9

87751998

RETAINING PLATE

Front Electrical Close Off

1шт.

10

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

12

87729511

MOUNTING CLIP

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
