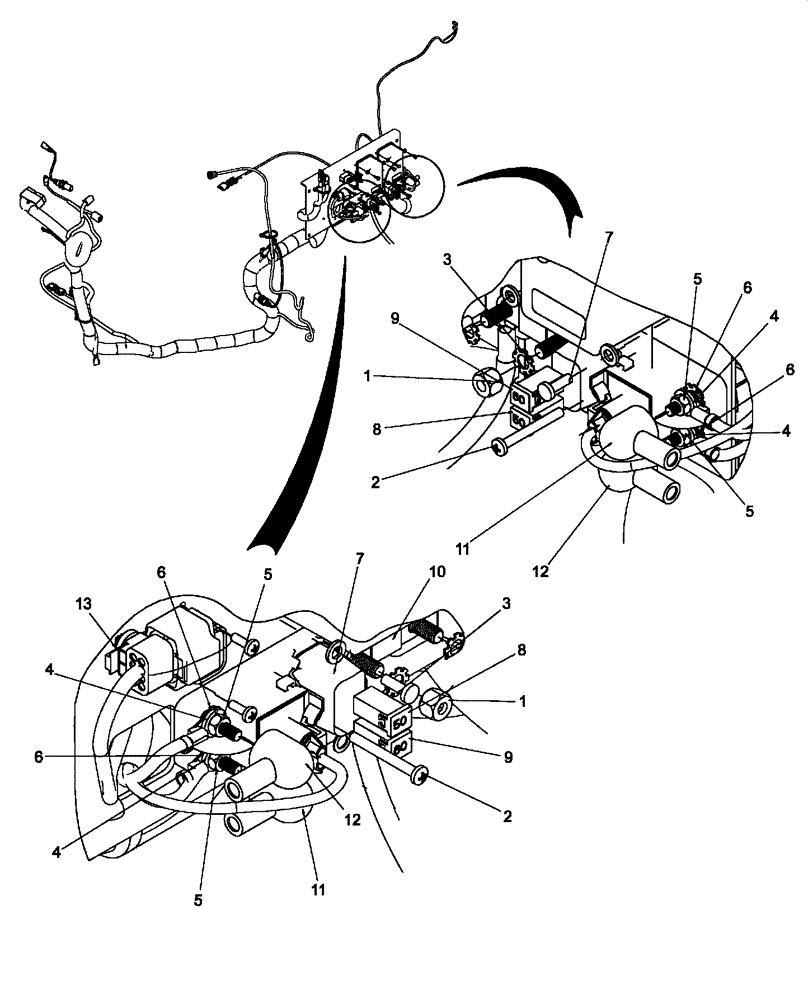

Запчасти Case 650L (55.100.04[02]) - HARNESS, MAIN ROPS (55) - ELECTRICAL SYSTEMS

1

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

2

840-1545

SCREW,Phillips Drive, Pan HD, M5 x 45mm, Cl 4.8

2шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

4

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

5

86625072

NUT,Hex, M6, Cl 10

4шт.

6

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

7

87315250

MODULE

Relay, Power

2шт.

8

87327348

FUSE,50 Amp

32 Volt 50A

2шт.

9

87327350

FUSE,60 Amp

32 Volt 60A

2шт.

10

87630150

WIRE HARNESS

Busbar, Accessory Relay, Coldstart

1шт.

11

87710105

TERMINAL CONNECTOR

Cover

2шт.

12

87710106

TERMINAL CONNECTOR

Cover

2шт.

13

NSS

NOT SOLD SEPARAT

PLUG

1шт.
