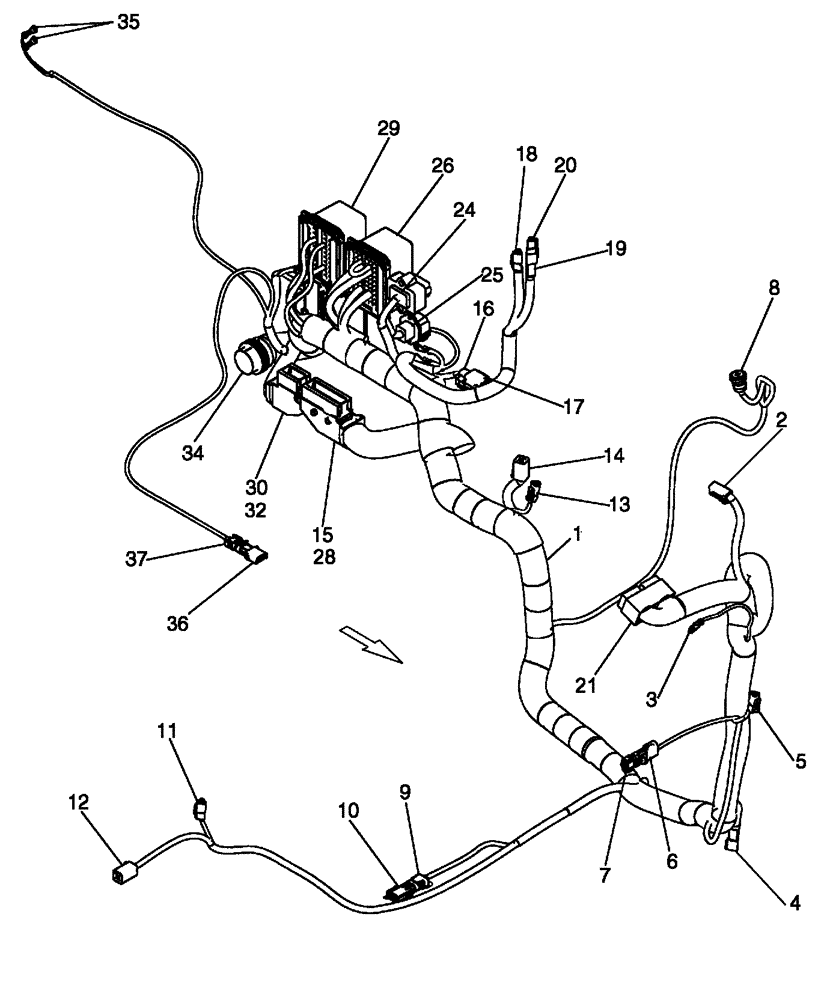

Запчасти Case 650L (55.100.04[01]) - HARNESS, MAIN ROPS (55) - ELECTRICAL SYSTEMS

1

87685390

HARNESS

Main Rops

1шт.

2

NSS

NOT SOLD SEPARAT

Connector, To Dashboard 2

1шт.

3

1964712C1

TERMINAL CONNECTOR

Ground

1шт.

4

87703302

ELEC CONNECTOR,Male, 14 - 20 SAE

Decelerator Pedal

1шт.

5

87703300

ELEC CONNECTOR

Brake Pedal

1шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

Low Idle

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

Dustcap For 6

1шт.

8

87703295

CONTACT HOUSING,4 Pole

To Left Door Wiper

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Rops Heater

1шт.

10

245483C1

ELEC CONNECTOR,Male, 2 Pin

Dustcap For 9

1шт.

11

225296C1

ELEC CONNECTOR

Proximity Switch

1шт.

12

225352C1

WEDGE

CONNECTOR, Cab Oprion

1шт.

13

225295C1

ELEC CONNECTOR,Female, 3 Pin

Proximity Switch

1шт.

14

225352C1

WEDGE

CONNECTOR, Joystick

1шт.

15

87703306

MULTIPOLE CONNECTOR,Female, 52 Pole

Drivetrain Controller 1

1шт.

16

87710107

CONTACT HOUSING,Female, 8 Pole

Global Tracks

1шт.

17

87710102

CONTACT HOUSING,8 Pole

For 16

1шт.

18

87703300

ELEC CONNECTOR

Reverse Ratio

1шт.

19

87703302

ELEC CONNECTOR,Male, 14 - 20 SAE

Throttle Position

1шт.

20

NSS

NOT SOLD SEPARAT

Dust Cap For 19

1шт.

21

225414C1

SOCKET/RECEPTACLE

Connector, To Dashboard Harness

1шт.

22

87712615

TERMINAL CONNECTOR,10 GA

Ground

2шт.

23

256340A1

CONNECTOR, ELEC

CONNECTOR AC Power Relay (Not Shown)

1шт.

24

87710104

ELEC CONNECTOR

To Lighting, 12 Cavity

1шт.

25

442021A1

ELEC CONNECTOR,Male, 4 Pin

To Lighting, 4 Cavity

1шт.

26

87312843

FUSE BOX

Non Bussed Fuse & Relay Block

1шт.

27

1964716C1

TERMINAL CONNECTOR

(Not Shown)

2шт.

28

87703308

CONTACT HOUSING,52 Pole

For 15

1шт.

29

87315248

RELAY

Bussed Fuse & Relay Block

1шт.

30

87703304

MULTIPOLE CONNECTOR,Female, 28 Pole

Drivetrain Controller 2

1шт.

31

87712615

TERMINAL CONNECTOR,10 GA

Ground (Not Shown)

2шт.

32

87703305

CONTACT HOUSING,28 Pole

For 30

1шт.

33

256340A1

CONNECTOR, ELEC

CONNECTOR Acc Power Relay B (Not Shown)

1шт.

34

87710099

ELEC CONNECTOR

To Chassis Harness

1шт.

35

1964703C1

TERMINAL CONNECTOR

Backup Alarm

2шт.

36

245483C1

ELEC CONNECTOR,Male, 2 Pin

Dustcap For 37

1шт.

37

245482C1

ELEC CONNECTOR,2 Pin

Power Seat

1шт.
