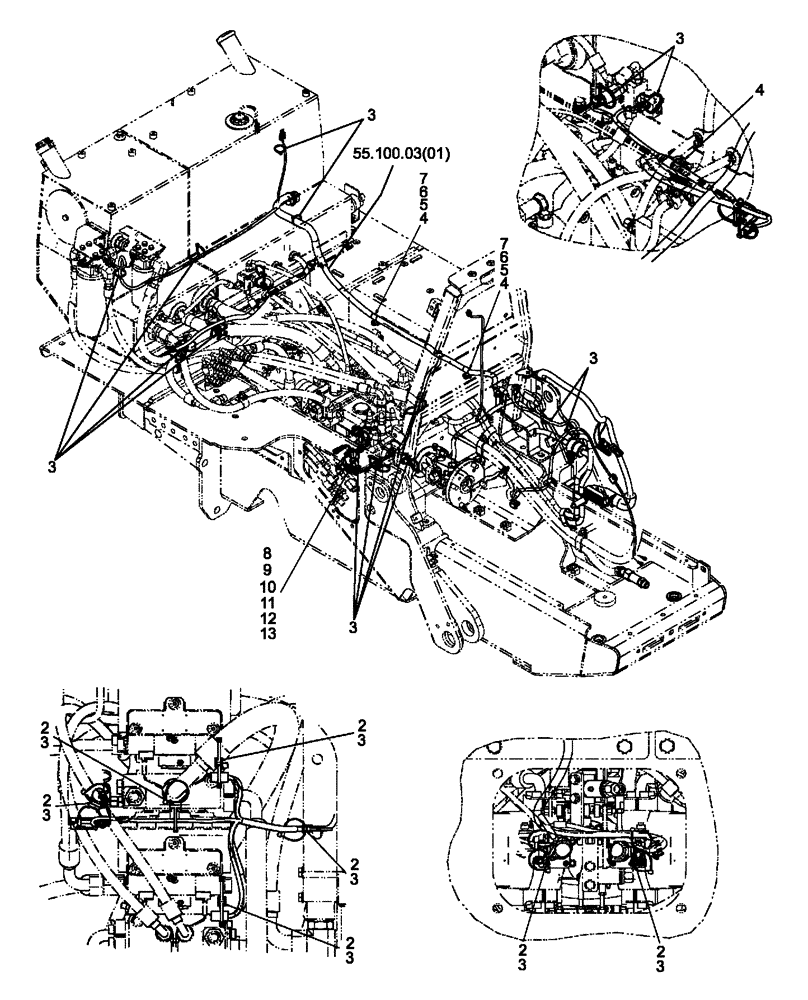

Запчасти Case 650L (55.100.03[03]) - HARNESS, ELECTRICAL ENGINE - INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84245147

HARNESS

Engine

1шт.

2

86982400

SPACER

7шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

25шт.

4

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

3шт.

5

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

87403648

PRESSURE SWITCH

1шт.

9

201-426

TEE,9/16"-18 ORFS x 9/16"-18 Sw Br

Inc. 10

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

3шт.

11

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Inc. 12,13

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.
