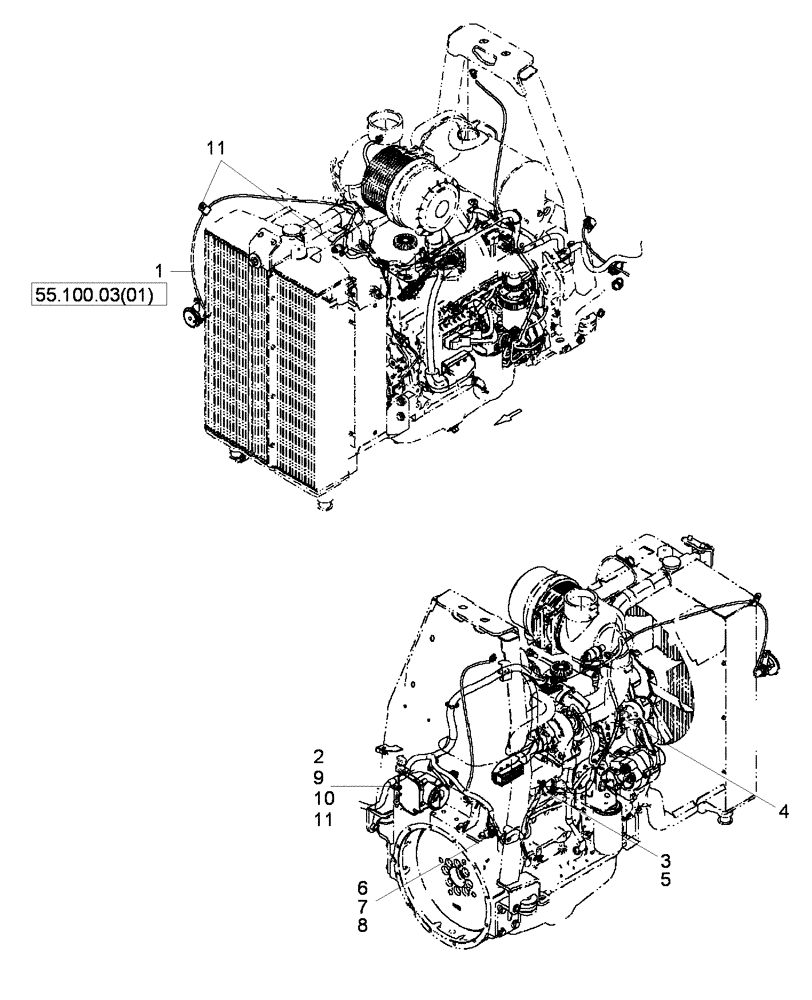

Запчасти Case 650L (55.100.03[02]) - HARNESS, ELECTRICAL ENGINE - INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84245147

HARNESS

Engine

1шт.

2

514-725

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

4

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

7

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

1шт.

8

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

10

465593R1

SPACER,12.5mm ID x 17.14mm OD x 63.5mm L

1шт.

11

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.
