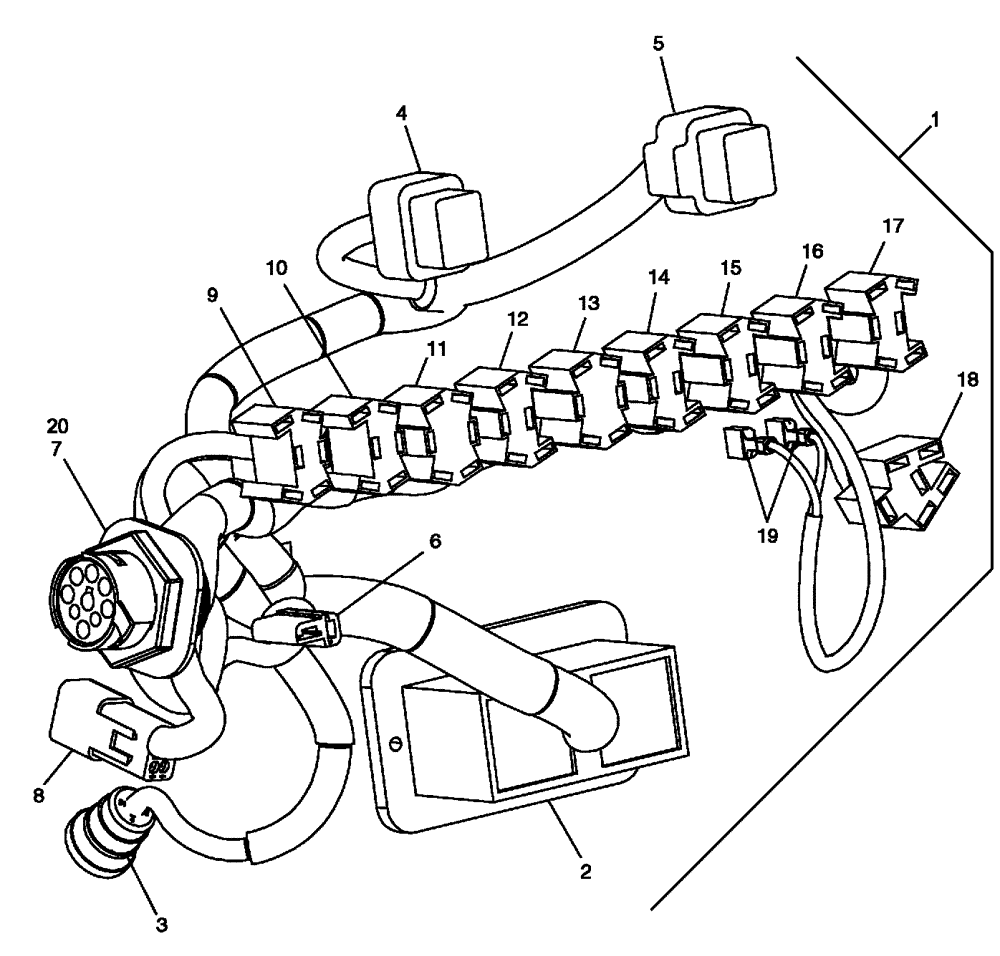

Запчасти Case 650L (55.100.02) - HARNESS, CONSOLE - CAB/CANOPY (55) - ELECTRICAL SYSTEMS

1

84156767

HARNESS

Dashboard Cab and Canopy Models; Inc. 2-20

1шт.

2

225415C1

CONNECTOR, ELEC

CONNECTOR

1шт.

3

87703295

CONTACT HOUSING,4 Pole

Front Wiper

1шт.

4

87706721

TERMINAL CONNECTOR,Female

Instrument Cluster. On The Smaller Diameter Wire

1шт.

5

87706720

TERMINAL CONNECTOR,Female

Instrument Cluster. On The Larger Diameter Wire

1шт.

6

877291R1

ELEC CONNECTOR,Female

Cigarette Lighter

1шт.

7

87736919

CONTACT HOUSING,Female, 9 Pole

Diagnostic

1шт.

8

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

To Main Harness 2

1шт.

9

245781C1

CONNECTOR, ELEC

CONNECTOR Front Headlights

1шт.

10

245781C1

CONNECTOR, ELEC

CONNECTOR Rear Headlights

1шт.

11

398776A1

CONNECTOR, ELEC

CONNECTOR Front/Rear Wiper

1шт.

12

245781C1

CONNECTOR, ELEC

CONNECTOR Front/Rear Washer

1шт.

13

398776A1

CONNECTOR, ELEC

CONNECTOR Door Wiper Switch

1шт.

14

245781C1

CONNECTOR, ELEC

CONNECTOR Door Washer

1шт.

15

245781C1

CONNECTOR, ELEC

CONNECTOR Up/Down Switches

1шт.

16

245781C1

CONNECTOR, ELEC

CONNECTOR Enter/Esc

1шт.

17

245781C1

CONNECTOR, ELEC

CONNECTOR Horn

1шт.

18

225253C1

CONNECTOR, ELEC

CONNECTOR Ignition Switch

1шт.

19

NSS

NOT SOLD SEPARAT

Terminals- Buzzer

2шт.

20

87737472

JAM NUT,Hex, M35 x 1

Jam

1шт.
