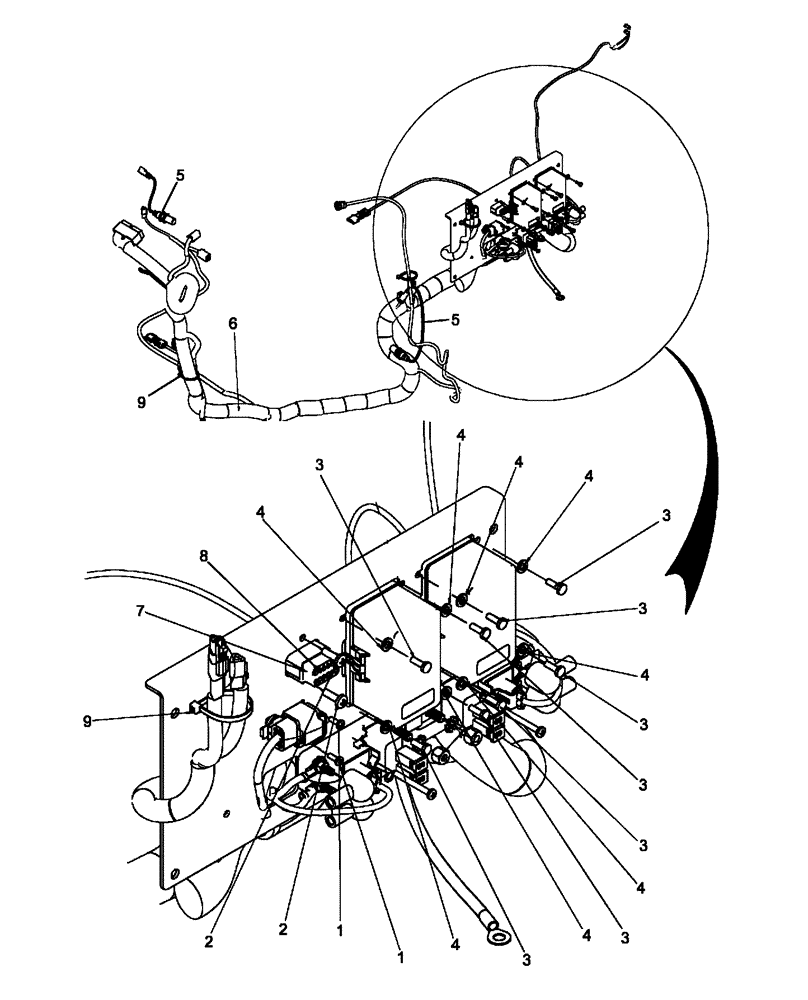

Запчасти Case 650L (55.100.01[02]) - HARNESS, MAIN ROPS (55) - ELECTRICAL SYSTEMS

1

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

3

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

8шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

5

87596056

SWITCH

Proximity With 300 mm Lead; Parking Brake/Lockout Lever

2шт.

6

87685390

HARNESS

Main Rops

1шт.

7

225389C1

CONNECTOR, ELEC

CONNECTOR

1шт.

8

453133C1

PLUG

12шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.
