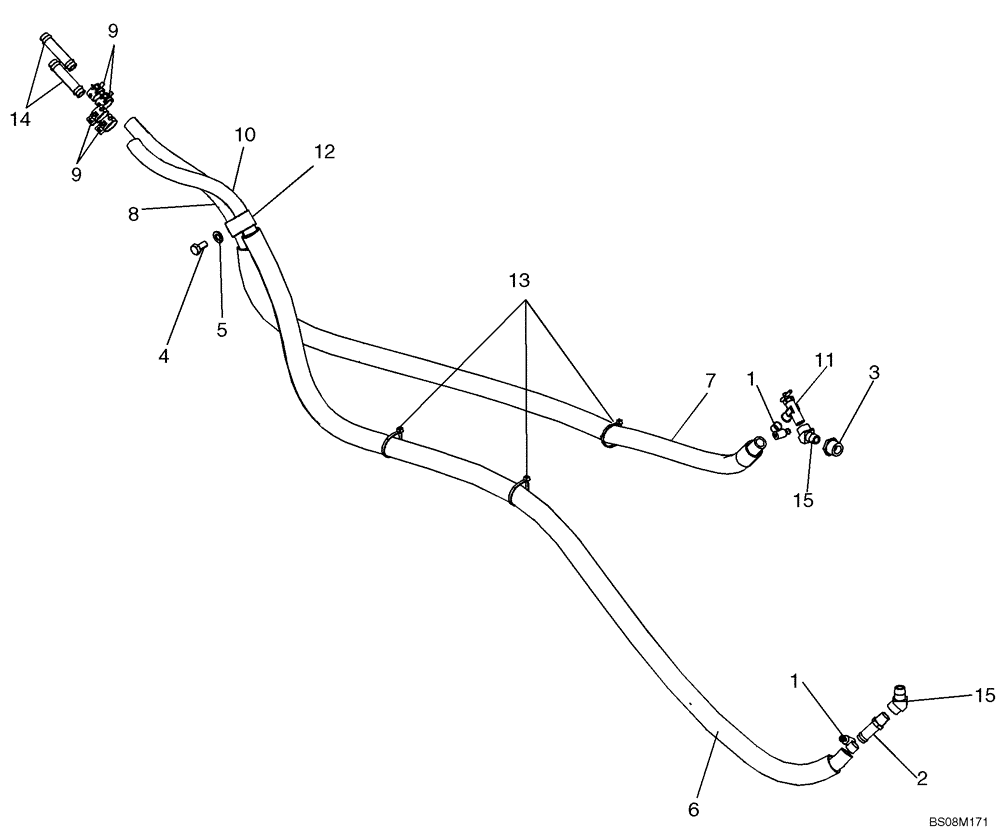

Запчасти Case 650L (50.200.04) - CAB - HEATING SYSTEM (AT ENGINE) (50) - CAB CLIMATE CONTROL

1

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

2

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

1шт.

3

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

6

87482870

CONDUIT

Heater Return

1шт.

7

87482871

CONDUIT

Heater Supply

1шт.

8

87715141

HEATER HOSE,15.75" mm ID, 1635.00 mm, SAE 20R3

1шт.

9

1954736C1

HOSE CLAMP,#24

4шт.

10

436522A1

HEATER HOSE,15.9mm ID x 2134mm L

Return

1шт.

11

A16764

VALVE

Shut Off

1шт.

12

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

14

S104739

TUBE,0.625" OD x 3" L

Hose Splice

2шт.

15

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

2шт.
