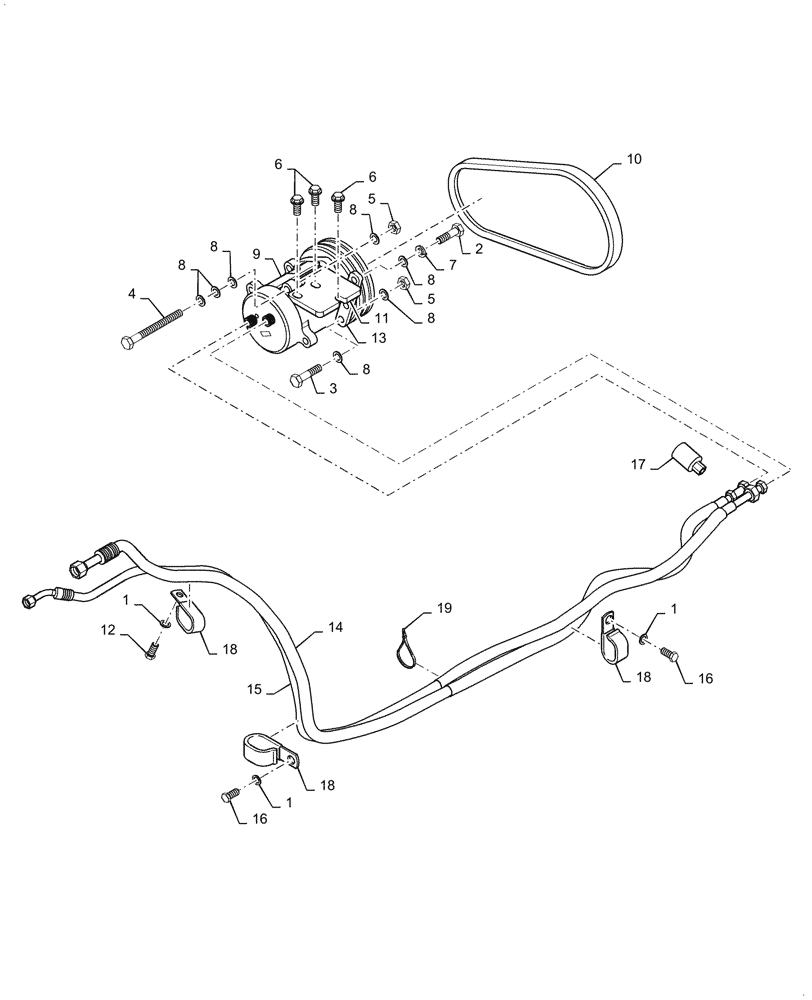

Запчасти Case 650L (50.200.02) - CAB- AIR CONDITIONING COMPRESSOR (50) - CAB CLIMATE CONTROL

1

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

4

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

9

86993462

AIRCOND. COMPRESSOR

12V Double Groove

1шт.

9

86993462GV

AIRCOND. COMPRESSOR

Value, 12V Double Groove

1шт.

86993462R

REMAN-COMPRESSOR

650L TIER 3 (HYDRO) (2/09-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

10

87492321

V-BELT,12.70 mm W x 1029.00 mm L

1шт.

11

87628433

BRACKET

Support Compressor

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

13

84716C1

SUPPORT

1шт.

14

87495823

HOSE

A/C Suction, 2329 mm (91 - 3/4 in)

1шт.

15

87495826

HOSE

A/C Discharge 2259 mm (89 in)

1шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

17

284273A2

SWITCH, A/C HIGH PRE

1шт.

18

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

3шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
