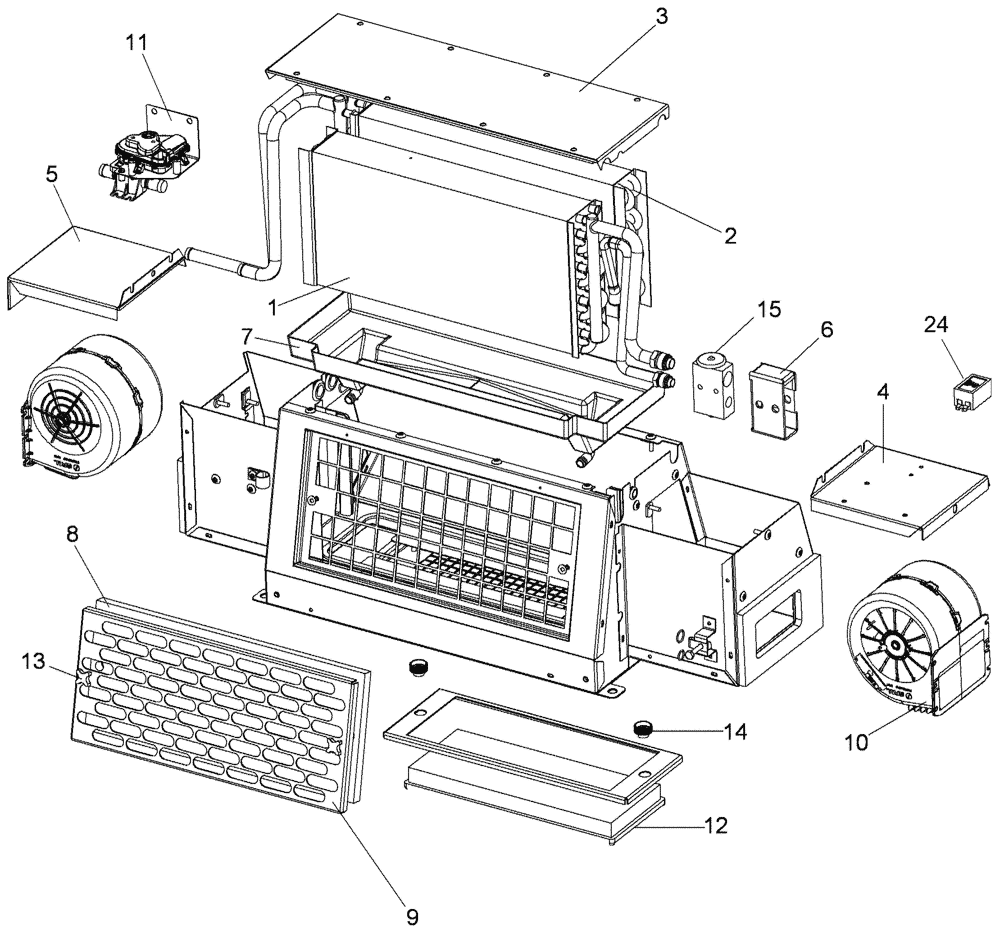

Запчасти Case 650L (50.200.01) - CAB - HEATER AND AIR CONDITIONING (50) - CAB CLIMATE CONTROL

1

87721574

EVAPORATOR

1шт.

2

87721575

HEATER

1шт.

3

87721576

COVER

1шт.

4

87721577

COVER

1шт.

5

87721578

COVER

1шт.

6

87721581

COVER

1шт.

7

87721582

PAN

1шт.

8

87721587

AIR FILTER

1шт.

9

87721583

GRILLE

1шт.

10

87721585

BLOWER

1шт.

11

87721586

HEATER VALVE

1шт.

12

60-4452T2

FILTER

1шт.

12

87397414

CAB FILTER

17" Long, 6" Wide, 1/4" Thick

1шт.

13

87586960

KNOB

Fresh Air

2шт.

14

87704478

KNOB

Recirculate

2шт.

15

386535A1

VALVE

Expansion

1шт.

16

87721584

WIRE HARNESS

(Not Shown)

1шт.

18

87721562

TUBE,.375" OD

#6 TXV to Bulkhead (Not Shown)

1шт.

19

87721563

TUBE

#10 TXV to Bulkhead (Not Shown)

1шт.

20

87721564

TUBE

#8 Hot Gas (Not Shown)

1шт.

21

87721565

TUBE,9.55, 6.3 mm L

#6 Liquid Line (Not Shown)

1шт.

22

87721566

HOSE ASSY.

#6 Drier to Bulkhead (dryer to evaporator) (Not Shown)

1шт.

23

87696535

RECEIVER-DRYER,Air Conditioner

(Not Shown)

1шт.

24

87723920

THERMOSTAT

Electronic

1шт.
