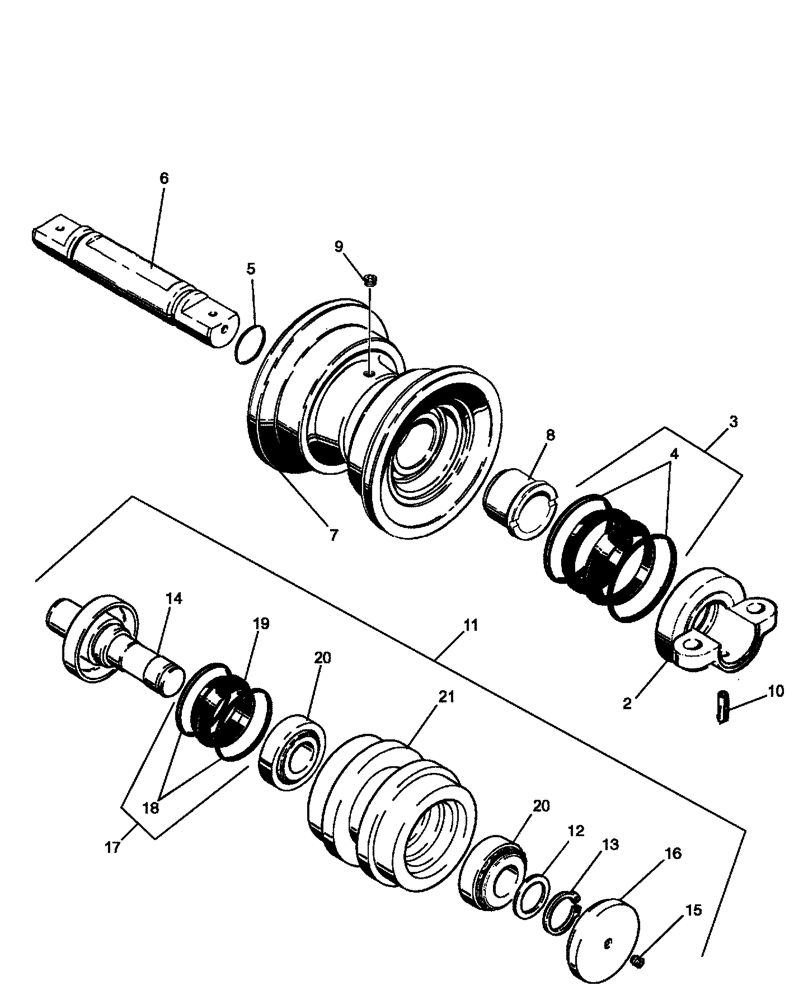

Запчасти Case 650L (48.138.01) - TRACK ROLLER (48) - TRACKS & TRACK SUSPENSION

1

87581948

TRACK ROLLER

Painted, Inc. 1 - 9, With Lubrication Ports; Includes 87581946

12шт.

2

427109A1

BRACKET

2шт.

3

S113075

SEAL

Inc. 4

2шт.

4

N6846

O-RING,75.7mm ID x 9.5mm Width

2шт.

5

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

2шт.

6

R33569

SHAFT

1шт.

7

NSS

NOT SOLD SEPARAT

Hub

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

2шт.

9

R33557

PLUG

1шт.

10

R33570

PIN

2шт.

11

47695843

TRACK ROLLER

Carrier

2шт.

12

NSS

NOT SOLD SEPARAT

Spacer, Incl in 11

1шт.

13

NSS

NOT SOLD SEPARAT

Snap Ring, Incl in 11

1шт.

14

NSS

NOT SOLD SEPARAT

Shaft Housing

1шт.

15

NSS

NOT SOLD SEPARAT

Plug

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Carrier Roller End

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Seal

2шт.

19

NSS

NOT SOLD SEPARAT

Seal

2шт.

20

NSS

NOT SOLD SEPARAT

2шт.

21

NSS

NOT SOLD SEPARAT

Hub

1шт.
