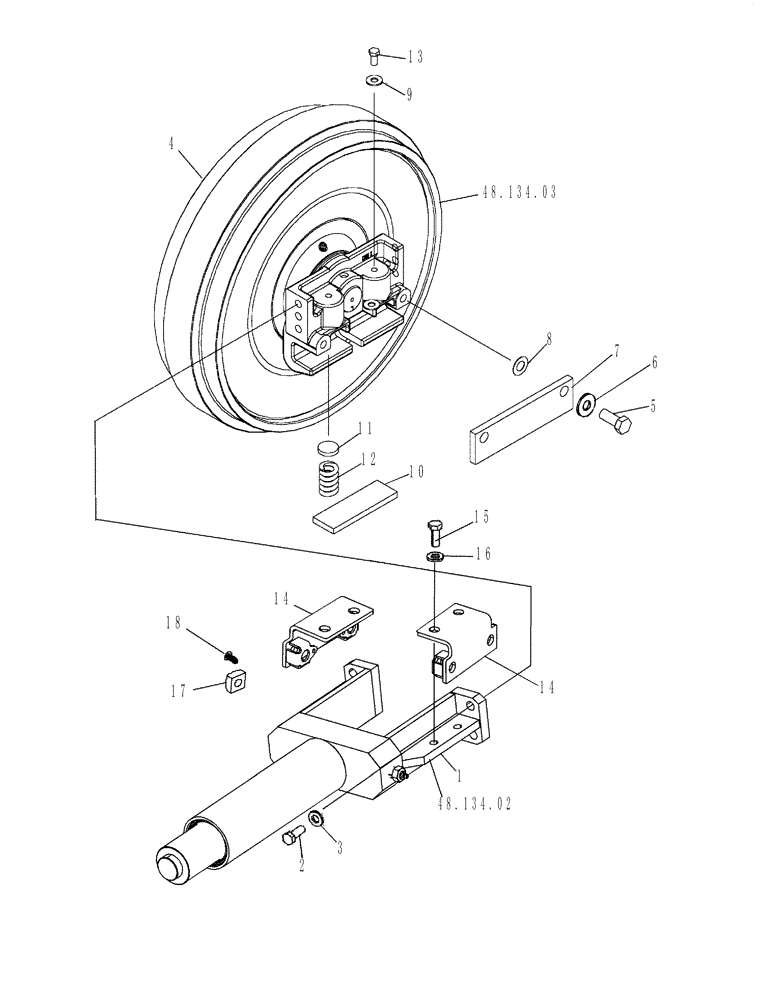

Запчасти Case 650L (48.134.01) - TRACK ADJUSTER AND IDLER - MOUNTING (48) - TRACKS & TRACK SUSPENSION

1

87631118

YOKE

Adjuster

2шт.

2

410-9824

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

8шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

4

389164A2

FRONT IDLER

2шт.

5

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

6

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

8шт.

7

87353993

LARGE PLATE

PLATE, LARGE Track

4шт.

8

D44330

SHIM,.031" Thk

1шт.

9

495-21044

WASHER,3/8"

8шт.

10

R58720

LARGE PLATE

PLATE, LARGE

4шт.

11

R33245

SPRING SEAT

8шт.

12

188866A1

SHOCK ABSORBER

8шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

8шт.

14

87631145

BRACKET

4шт.

15

87018374

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

17

129-857

SQUARE NUT,Sq, 1/2"-13

8шт.

18

336371A1

PIN,4.88mm OD x 14.23mm L

8шт.
