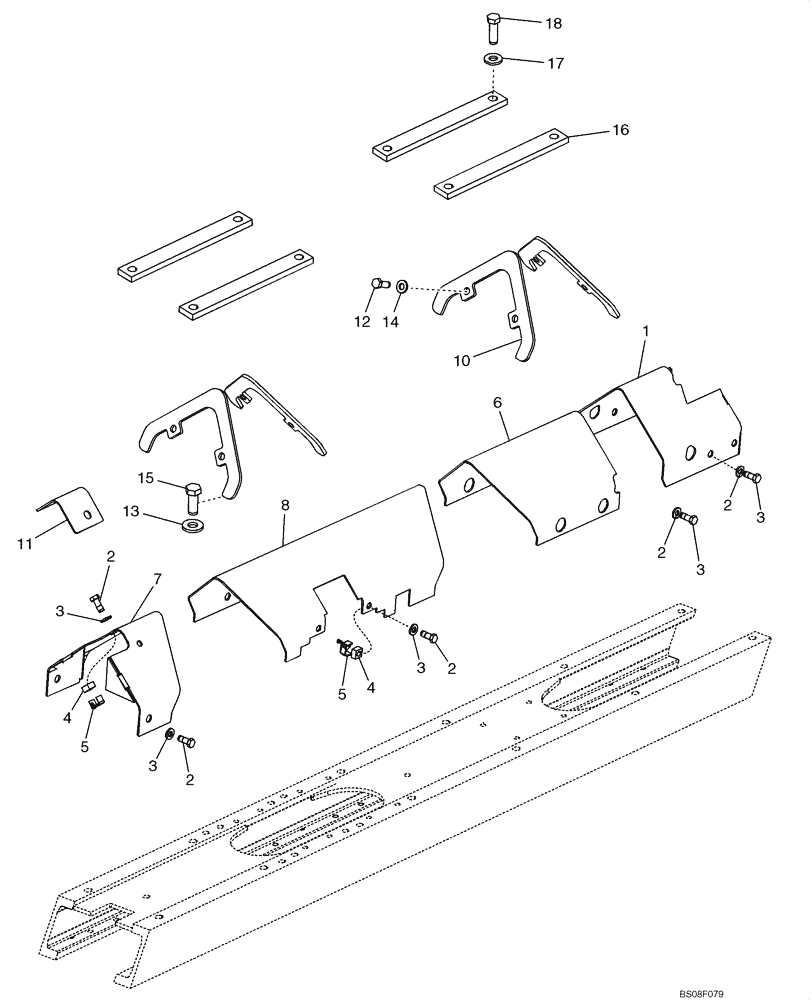

Запчасти Case 650L (48.130.02) - FRAME, TRACK - COVERS (48) - TRACKS & TRACK SUSPENSION

1

87634800

COVER

Ider

2шт.

2

87018374

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

28шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

28шт.

4

129-857

SQUARE NUT,Sq, 1/2"-13

8шт.

5

336371A1

PIN,4.88mm OD x 14.23mm L

8шт.

6

87650046

COVER

Front Track

2шт.

7

87631154

COVER

Rear Track

2шт.

8

87639456

COVER

Center Track Right Hand

1шт.

9

87631151

COVER

Center Track Left Hand (Not Shown)

1шт.

10

87639453

PLATE

Track Cover Filler

8шт.

11

87634798

COVER

Rear Track -CLT

2шт.

12

87018374

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

16шт.

13

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

16шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

16шт.

15

107-91232

LOCK BOLT,Locking, 3/4"-10 x 2", G8

16шт.

16

87650067

SPACER

CELT Track Frame

8шт.

17

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

16шт.

18

410-91240

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

16шт.
