(48.100.04) - TRACK CHAIN, EXTENDED LIFE (CELT) OPEN GROUSER - 16 INCH 39 LINK

Запчасти Case 650L (48.100.04) - TRACK CHAIN, EXTENDED LIFE (CELT) OPEN GROUSER - 16 INCH 39 LINK (48) - TRACKS & TRACK SUSPENSION

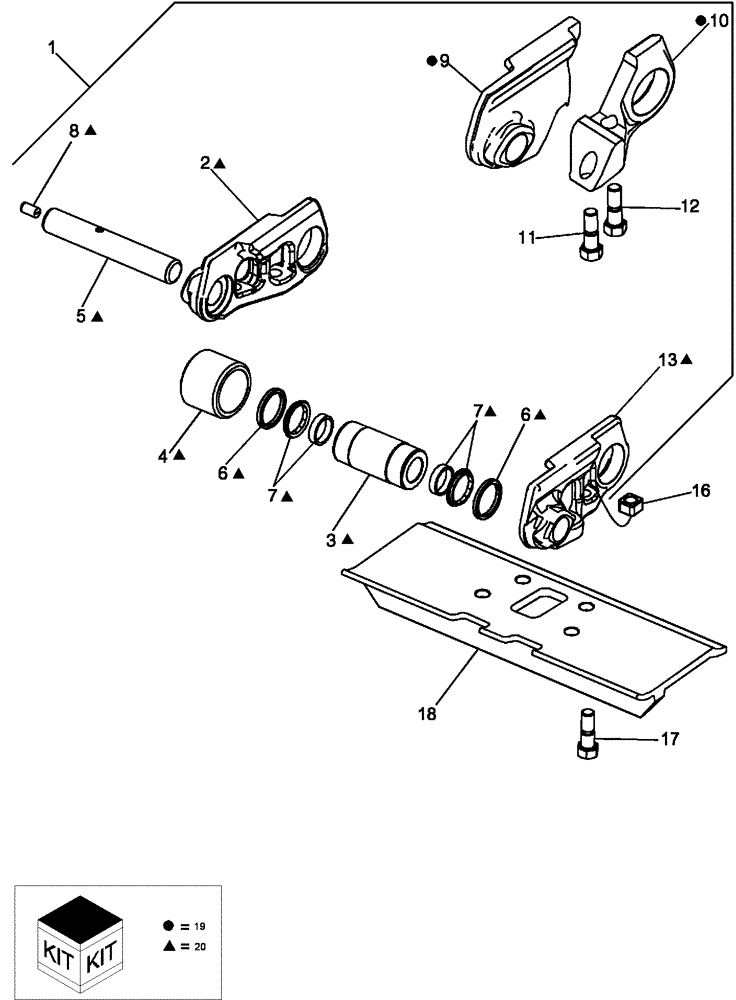

Схема запчастей Case 650L - (48.100.04) - TRACK CHAIN, EXTENDED LIFE (CELT) OPEN GROUSER - 16 INCH 39 LINK (48) - TRACKS & TRACK SUSPENSION
20
3
2
20
17
4
6
6
20
20
7
12
9
5
20
20
20
19
19
20
11
20
20
8
10
20
19
20
7
19
1
16
18
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87703162

CHAIN

Inc. 2 - 15

1шт.

2

220207A1

LINK

Left Hand Track

38шт.

3

220353A1

BUSHING

39шт.

4

323874A1

BUSHING

Rotating

39шт.

5

R57368

PIN

39шт.

6

R52299

SEALING RING

Thrust Ring

78шт.

7

R52300

SEAL

78шт.

8

R54334

PLUG,16mm

Oil

39шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

10

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

11

135984A1

BOLT

2шт.

12

133796A1

BOLT

2шт.

13

220208A1

LINK

Right Hand Track

38шт.

14

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link (Not Shown)

1шт.

15

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link (Not Shown)

1шт.

16

R57375

SQUARE NUT

Quantity is for One Side

152шт.

17

R57374

BOLT

Quantity is for One Side

152шт.

18

84146898

SHOE

396 mm (16 in) 1 Bar Open

39шт.

19

221122A1

KIT

MASTER LINK, Right Hand, Inc. 9, 10

1шт.

20

248111A1

KIT

Inc. 2 - 8, 13

1шт.

21

221121A1

KIT

MASTER LINK, Left Hand, Inc. 14, 15 (Not Shown)

1шт.
