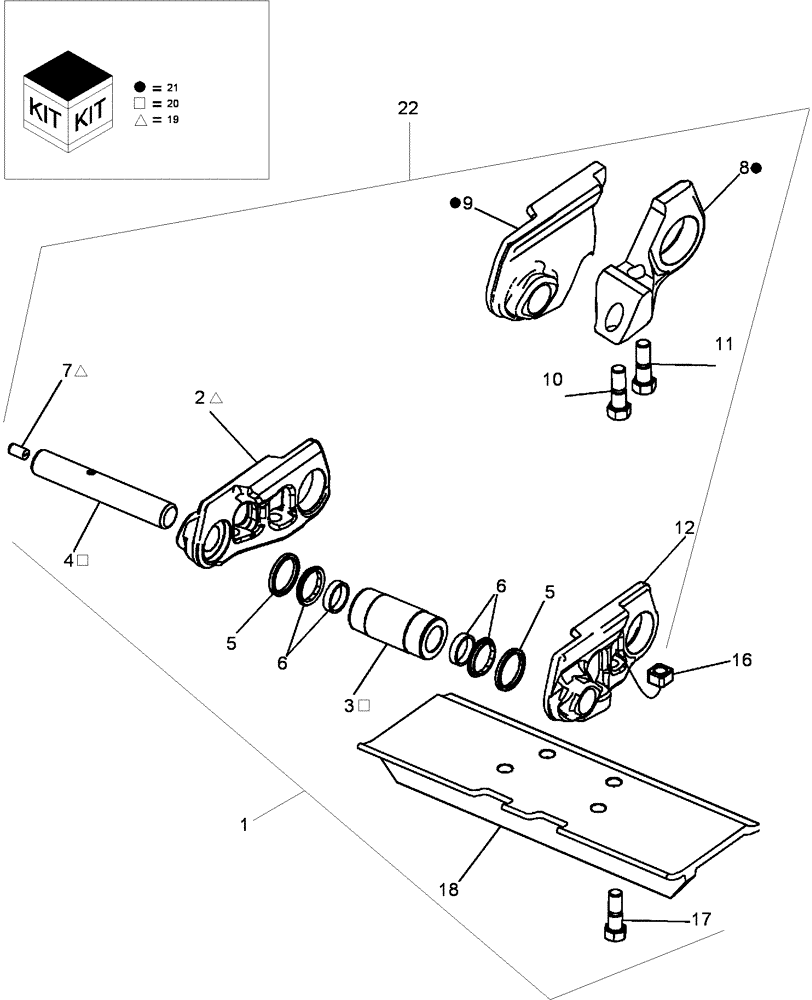

Запчасти Case 650L (48.100.03) - TRACK CHAIN, CASE LUBRICATED (CLT) CLOSED GROUSER - 27 INCH 39 LINK (48) - TRACKS & TRACK SUSPENSION

1

87716058

CHAIN

1шт.

2

R57403

CHAIN LINK

Track, Left Hand

38шт.

3

87715834

BUSHING

39шт.

4

R57368

PIN

39шт.

5

R57377

RING

Thrust Ring

78шт.

6

R57370

SEAL

78шт.

7

R54334

PLUG,16mm

Oil

39шт.

8

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

10

135984A1

BOLT

2шт.

11

133796A1

BOLT

2шт.

12

R57404

CHAIN LINK

Track, Right Hand

38шт.

13

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link (Not Shown)

1шт.

14

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link (Not Shown)

1шт.

15

199942A1

LINK

MASTER LINK, Service Kit, Left Hand, Replaces 130343A1 Link Used In Production; Inc. 13,14 (Not Shown)

1шт.

16

R57375

SQUARE NUT

Quantity is for One Side

152шт.

17

R57374

BOLT

Quantity is for One Side

152шт.

18

87741857

SHOE

Shoe, Track, 686 mm (27 in) 1 Bar Closed

39шт.

19

87498845

KIT

KIT, PIN AND BUSHING CLT; Inc. 3-7

1шт.

20

87498846

KIT

KIT, CLT LINK REPAIR; Inc. 2-7

1шт.

21

199943A1

LINK

MASTER LINK, Service Kit, Right Hand, Replaces 130344A1 Link Used In Production; Inc. 8, 9

1шт.

22

87715997

CHAIN

39Link CLT; Inc. 2-14

1шт.
