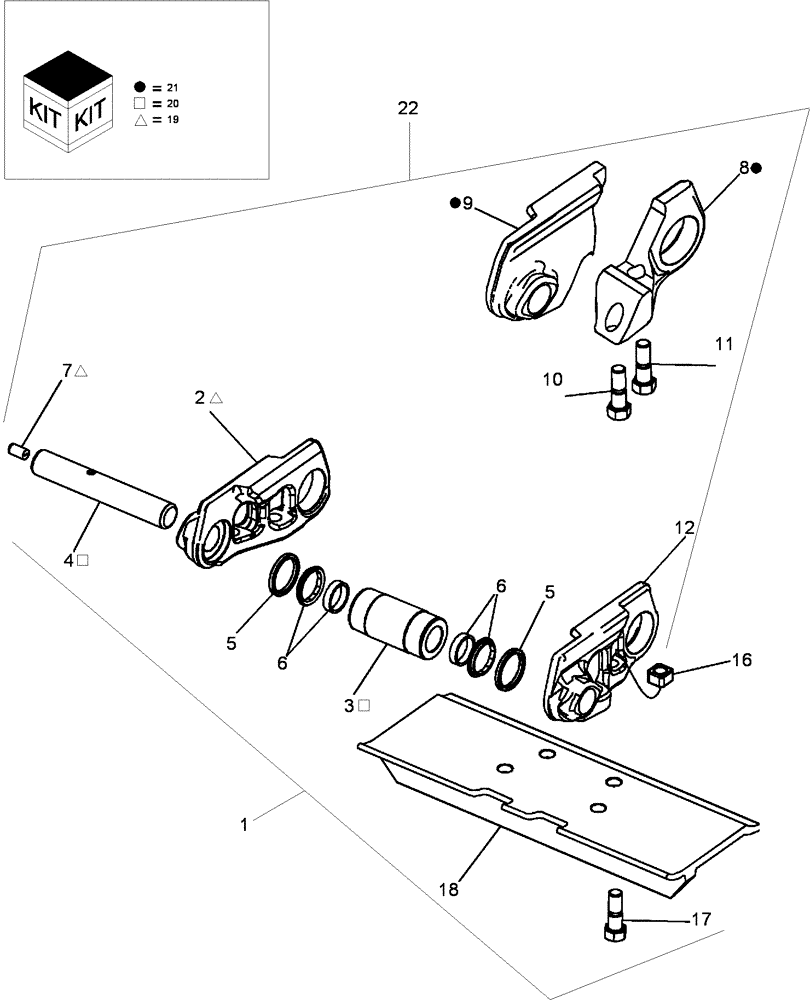

Запчасти Case 650L (48.100.01) - TRACK CHAIN, CASE LUBRICATED (CLT) CLOSED GROUSER - 16 INCH 39 LINK (48) - TRACKS & TRACK SUSPENSION

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, Inc. 2-18

2шт.

2

R57403

CHAIN LINK

Track, Left Hand

38шт.

3

87715834

BUSHING

39шт.

4

R57368

PIN

39шт.

5

R57377

RING

Thrust Ring

78шт.

6

R57370

SEAL

78шт.

7

R54334

PLUG,16mm

Oil Plug

39шт.

8

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

10

135984A1

BOLT

2шт.

11

133796A1

BOLT

2шт.

12

R57404

CHAIN LINK

Track, Right Hand

38шт.

13

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link (Not Shown)

1шт.

14

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link (Not Shown)

1шт.

15

199942A1

LINK

MASTER, Service Kit, Left Hand, Replaces 130343A1 Link Used In Production; Inc. 13, 14 (Not Shown)

1шт.

16

R57375

SQUARE NUT

Quantity is for One Side

152шт.

17

R57374

BOLT

Quantity is for One Side

152шт.

18

84146897

SHOE

396mm (16 in) 1 Bar Closed

39шт.

19

87498845

KIT

Inc. 3 - 7

1шт.

20

87498846

KIT

Inc. 2 - 7

1шт.

21

199943A1

LINK

MASTER, Service Kit, Right Hand, Replaces 130344a1 Link Used In Production; Inc. 8, 9

1шт.

22

87715997

CHAIN

39 Link CLT; Inc. 2-14

2шт.
