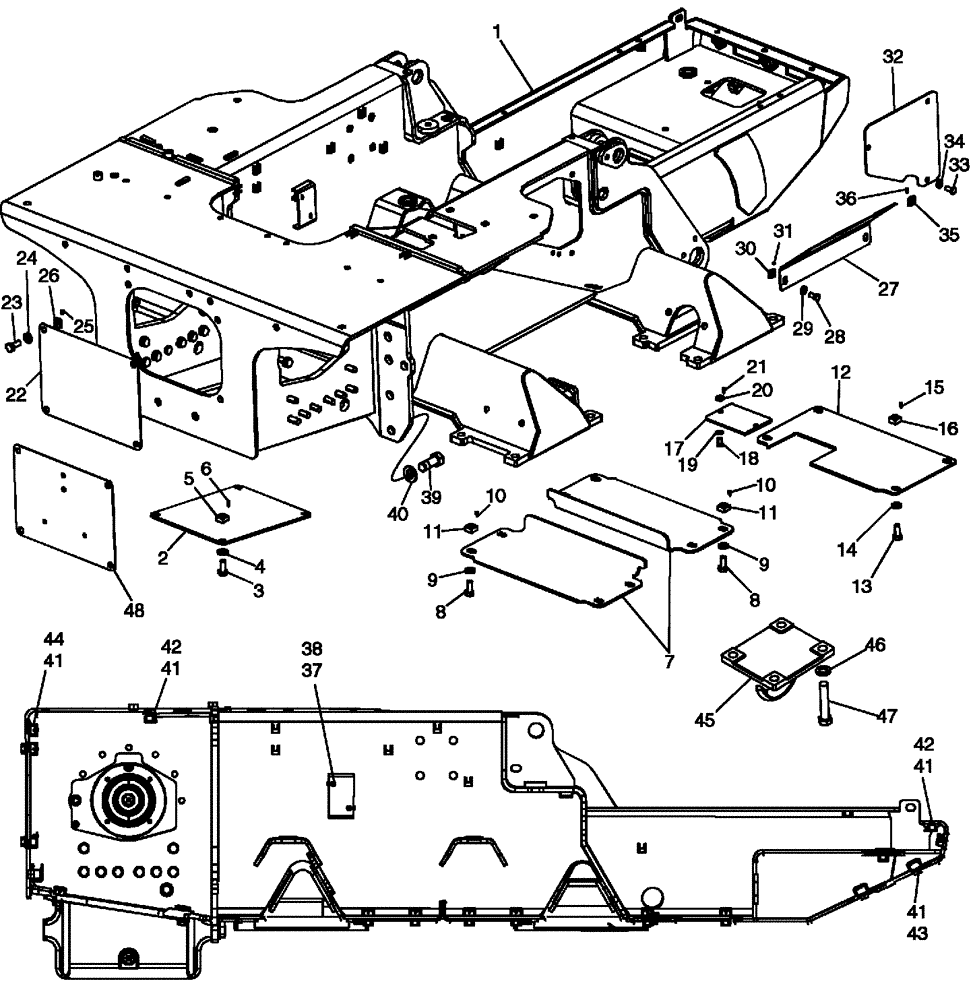

Запчасти Case 650L (39.100.01) - FRAME, MAIN (39) - FRAMES AND BALLASTING

1

87600734

FRAME

Chassis; Lower; Long Track (LT) Models

1шт.

1

87600736

FRAME

Chassis; Lower; Wide Track (WT) or Low Ground Pressure (LGP) Models

1шт.

2

87706438

PAN

Rear Belly

1шт.

3

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

5

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

7

87706443

PAN

Belly

2шт.

8

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

8шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

10

336371A1

PIN,4.88mm OD x 14.23mm L

8шт.

11

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

8шт.

12

87706453

PAN

Front Belly

1шт.

13

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

15

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

16

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

4шт.

17

87710382

COVER

Oil Access

1шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

19

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

20

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

2шт.

21

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

22

87600821

COVER

Rear

1шт.

23

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

25

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

26

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

4шт.

27

87706450

COVER

Hose Access

1шт.

28

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

30

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

4шт.

31

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

32

87706444

COVER

Fender

2шт.

33

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

35

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

6шт.

36

336371A1

PIN,4.88mm OD x 14.23mm L

6шт.

37

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

2шт.

38

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

39

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

10шт.

40

496-31106

WASHER,1 1/16" x 2" x .219", HDN

10шт.

41

336371A1

PIN,4.88mm OD x 14.23mm L

22шт.

42

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

12шт.

43

87535798

SQUARE NUT

5шт.

44

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

5шт.

45

450473A1

HOOK

Pull, Front

1шт.

46

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

47

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

48

84156087

COVER PLATE

Rear; To Use On Units With Ripper

1шт.
