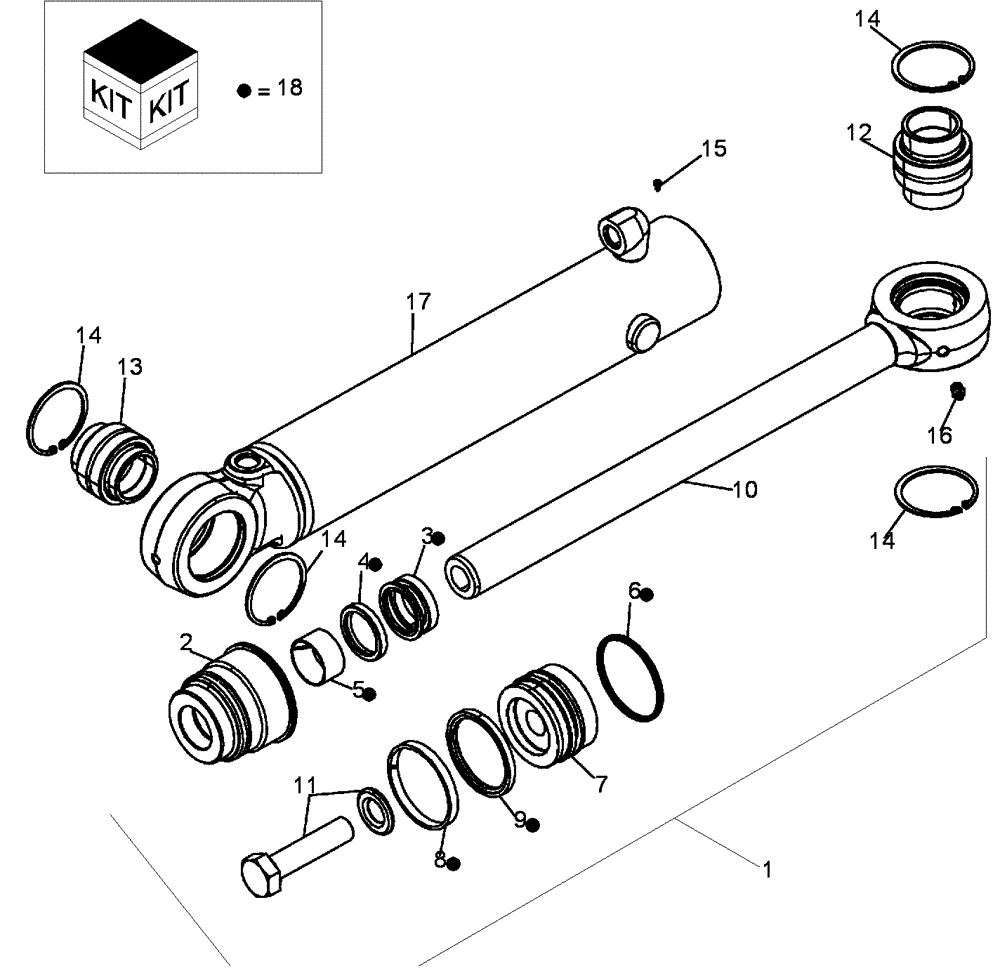

Запчасти Case 650L (35.741.03) - CYLINDER, ANGLE (35) - HYDRAULIC SYSTEMS

1

87750252

CYLINDER ASSY.

89 ID x 396 mm Stroke; Angle; Inc. 2-17

2шт.

1

87750252R

REMAN-HYD CYLINDER

650L CRAWLER DOZER TIER 3 (HYDRO) (2/09-)

2шт.

1

87750252C

CORE-HYD CYLINDER

Return Number

2шт.

2

87610735

GLAND

1шт.

3

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

4

1542875C1

SEAL KIT,44.4mm Rod

Rod & Buffer Seal

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Rod

1шт.

6

84130482

SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk

Static Head

1шт.

7

1986982C1

PISTON

1шт.

8

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

9

190332A1

SEAL,74.5mm ID x 88.77mm OD x 7.16mm Thk

Piston

1шт.

10

NSS

NOT SOLD SEPARAT

Order Ref #1

1шт.

11

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

1шт.

12

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

13

407539A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W

1шт.

14

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Int. 281

4шт.

15

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

87750254

TUBE,88.9 mm ID x 572.1 mm L

1шт.

18

84157290

SEAL KIT

Inc. 3 - 6, 8, 9

1шт.
