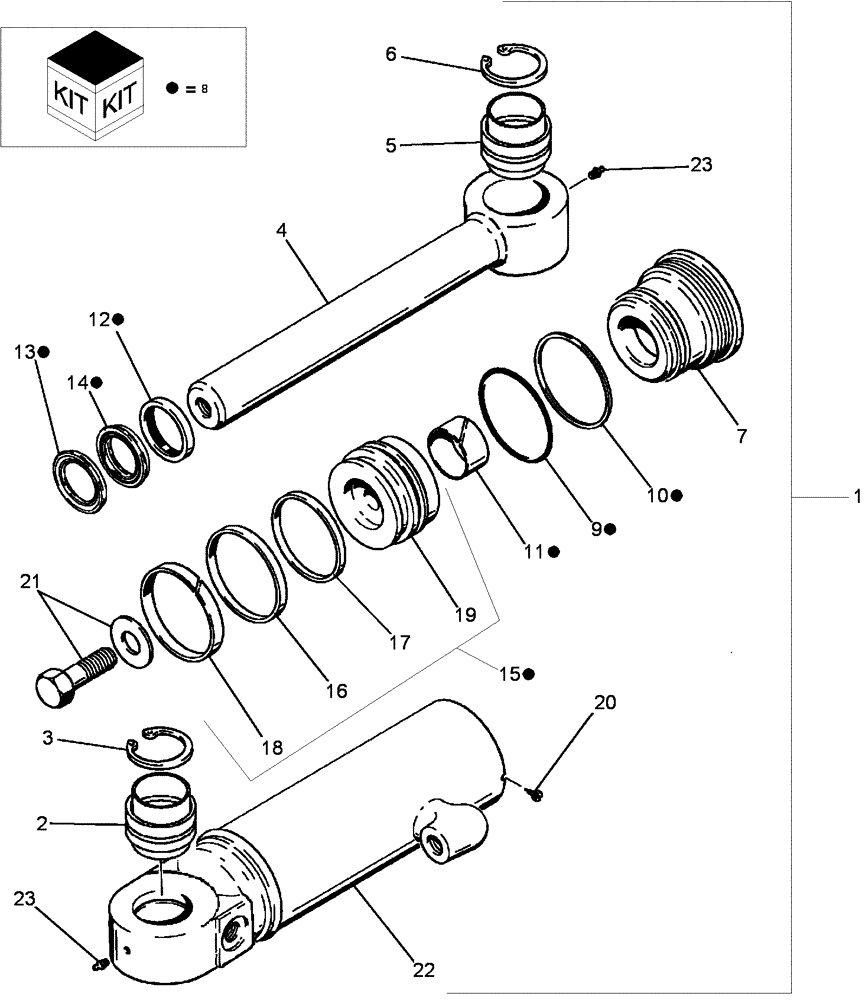

Запчасти Case 650L (35.741.02) - CYLINDER, TILT (35) - HYDRAULIC SYSTEMS

1

412683A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 137mm Stroke

89 ID x 137 mm Stroke; Tilt; Inc. 2-23

1шт.

1

412683A1R

REMAN-HYD CYLINDER

650L TIER 3 (HYDRO) (2/09-)

1шт.

1

412683A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

4

430299A1

PISTON ROD

1шт.

5

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

6

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

7

1971707C2

CYLINDER END CAP

Gland

1шт.

8

1543266C1

SEAL KIT

Inc. 9-18

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

11

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

12

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

13

1542875C1

SEAL KIT,44.4mm Rod

Inc. 14

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

135258A1

PISTON ASSY.

Inc. 16-19

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

19

135259A1

PISTON

1шт.

20

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

21

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

22

430298A1

TUBE

Tube

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
