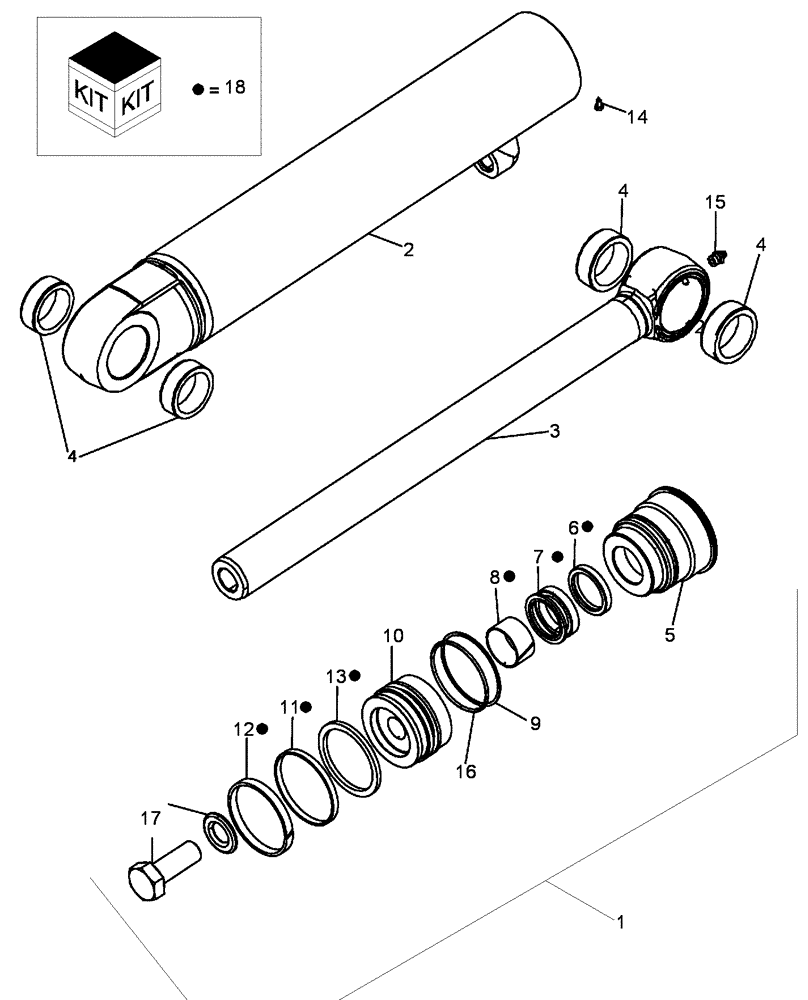

Запчасти Case 650L (35.741.01) - CYLINDER, LIFT (35) - HYDRAULIC SYSTEMS

1

417854A1

CYLINDER ASSY.

89 ID x 395 mm Stroke; Lift; Inc. 2-18

2шт.

1

87361535R

REMAN-HYD CYLINDER

650L TIER 3 (HYDRO) (2/09-), Reman for New PN 417854A1

2шт.

1

87361535C

CORE-HYD CYLINDER

Return Number

2шт.

2

405297A1

TUBE

1шт.

3

405299A1

PISTON ROD,44.4mm OD x 585.6mm L

1шт.

4

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

4шт.

5

355529A1

GLAND

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

7

1542875C1

SEAL KIT,44.4mm Rod

Rod & Buffer Seal

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Bearing Rod

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

10

1986982C1

PISTON

1шт.

11

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

12

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

13

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

14

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

16

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

17

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

Inc. Washer

1шт.

18

84155590

SEAL KIT

Inc. 6 - 8, 11, 12, 13

1шт.
