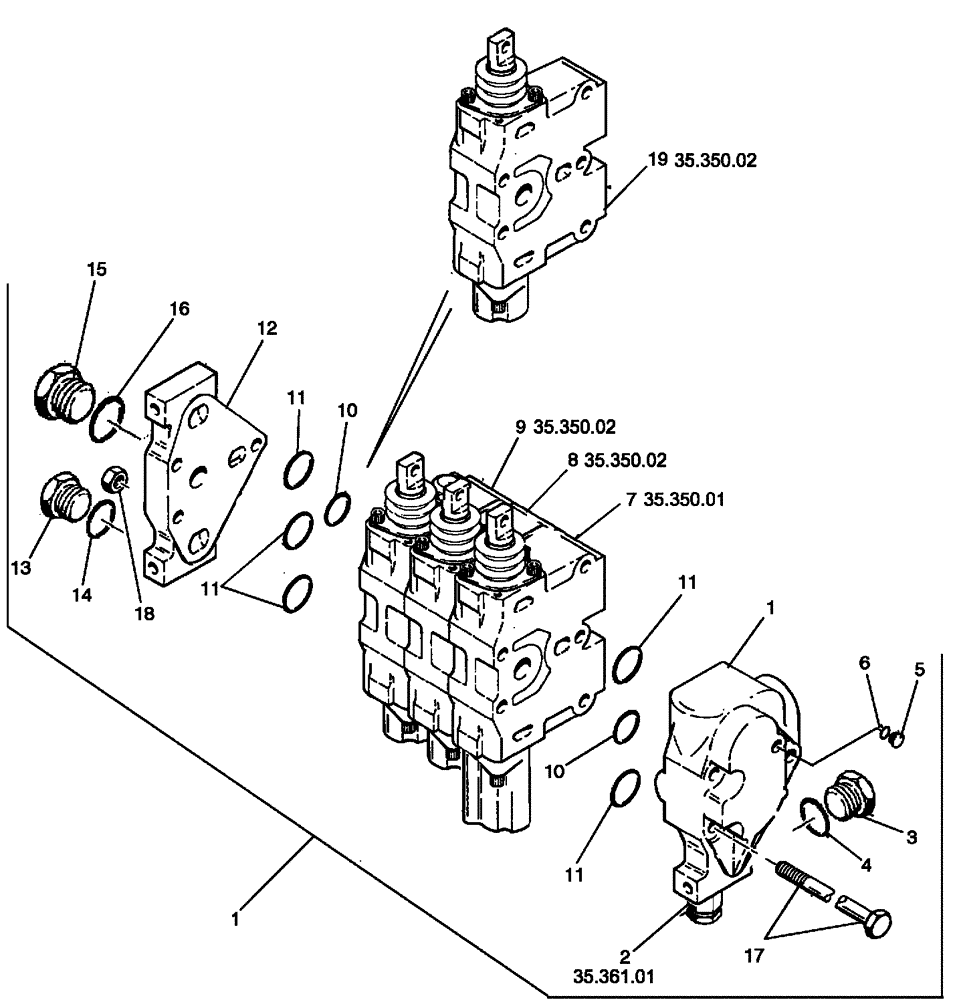

Запчасти Case 650L (35.361.11) - VALVE, CONTROL (35) - HYDRAULIC SYSTEMS

1

87311632

HYDRAULIC VALVE

Three Spool Control Valve; Inc. 2-18,20

1шт.

1

87311631

HYDRAULIC VALVE

Four Spool Control Valve; Inc. 2-20

1шт.

2

N8191

VALVE

Main Relief

1шт.

3

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Inc. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

9672438

PLUG,7/16" - 20 ORB

Inc. 6

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

87402656

HYD VALVE SECTION

Lift Control

1шт.

8

87402657

HYD VALVE SECTION

Tilt Control

1шт.

9

87402658

HYD VALVE SECTION

Angle Control

1шт.

10

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

5 Used On Three Spool Valve; 6 Used On Four Spool Valve

5-6шт.

11

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

11 Used On Three Spool Valve; 14 Used On Four Spool Valve

11-14шт.

12

100825A1

COVER

Inc. 13 - 16

1шт.

13

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Incl. Ref 14

1шт.

14

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

9841223

PLUG,1-1/16" - 12 ORB

Inc. 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

Three Spool Valve

3шт.

17

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

Four Spool Valve

3шт.

18

425-106

NUT,3/8"-16, Cl 5

3шт.

19

87402659

HYD VALVE SECTION

Auxiliary/Ripper Control

1шт.

20

87402654

HYD VALVE SECTION

Inlet and Outlet; Includes Main Relief Valve; Inc. 2 - 6

1шт.
