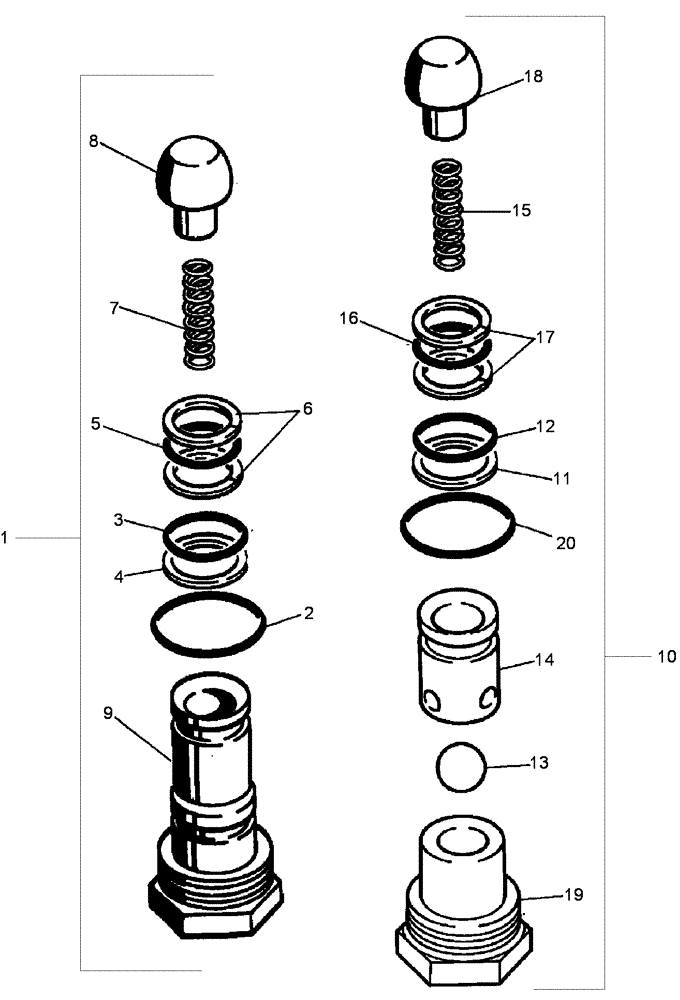

Запчасти Case 650L (35.361.03) - VALVE, CHECK - VALVE, ANTI-CAVITATION (35) - HYDRAULIC SYSTEMS

1

D87307

VALVE

Load Check Valve; Inc. 2-9; Lift Section Lower Port; Tilt Section Upper and Lower Ports

3шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Backup

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

D88725

BACK-UP RING

2шт.

7

H268730

SPRING

1шт.

8

D28576

VALVE POPPET

1шт.

9

NSS

NOT SOLD SEPARAT

Body

1шт.

10

122119A1

KIT

Anti-Cavitation Valve; Inc. 11-20; Lift Section Upper Port; Angle Section Upper and Lower Ports

3шт.

11

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Backup

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

211-1014

BALL,7/16" Dia

1шт.

14

N7902

RETAINER

1шт.

15

H268730

SPRING

1шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

17

D88725

BACK-UP RING

2шт.

18

D28576

VALVE POPPET

1шт.

19

NSS

NOT SOLD SEPARAT

Body

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
