Запчасти Case 650L (35.361.01) - VALVE, RELIEF (35) - HYDRAULIC SYSTEMS

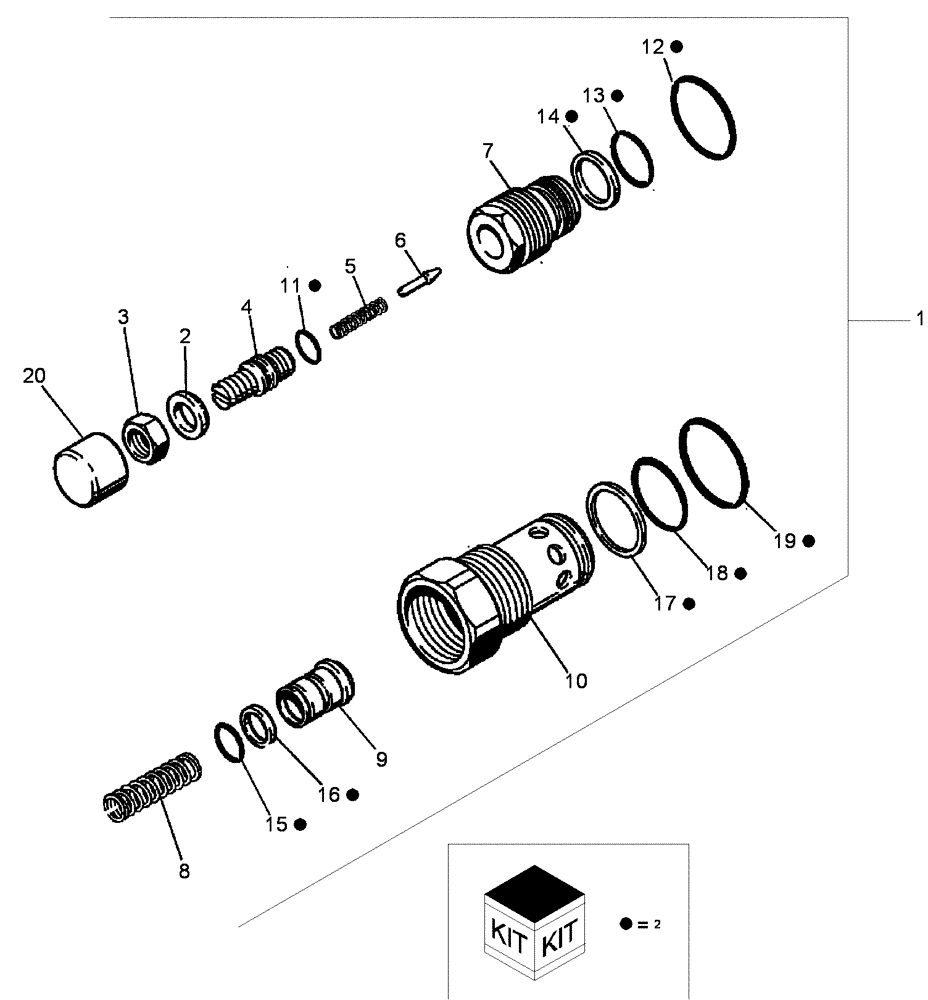

Схема запчастей Case 650L - (35.361.01) - VALVE, RELIEF (35) - HYDRAULIC SYSTEMS
2
16
2
9
6
13
19
18
2
11
12
2
2
2
5
2
15
4
2
14
10
2
20
2
17
2
8
1
2
7
3

Артикул

Название

Примечание

Количество

1

N8191

VALVE

Main Relief; Inc. 2-20

1шт.

2

1978295C1

WASHER

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

4

N9463

ADJUSTMENT SCREW

Adjustment

1шт.

5

N9465

SPRING

1шт.

6

N9464

PLUNGER

Poppet

1шт.

7

N9769

BODY

Poppet Valve

1шт.

8

S300250

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

11

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

12

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

13

A55911

O-RING,0.807" ID

1шт.

14

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

1шт.

15

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

16

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

Backup

1шт.

17

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

1шт.

18

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

1шт.

19

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Cover

1шт.

21

106721A1

SEAL KIT

Inc. 11 - 19

1шт.

Выбрано товаров: 21
