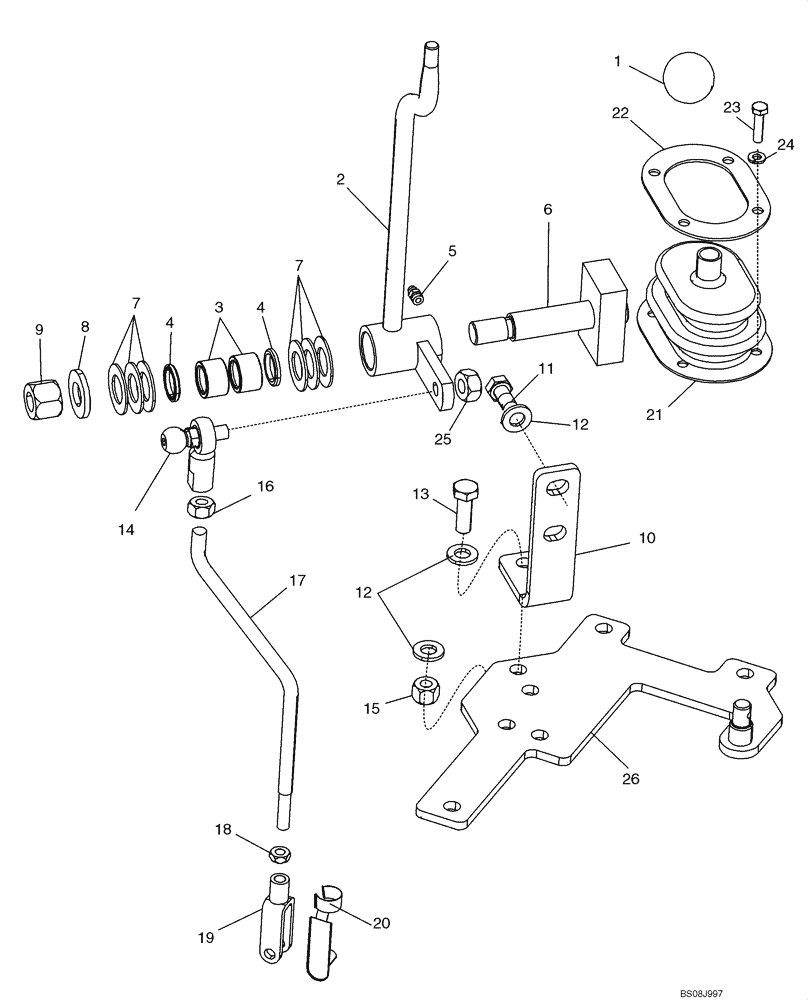

Запчасти Case 650L (35.355.03) - CONTROLS - LEVER AND LINKAGE, FOURTH SPOOL (35) - HYDRAULIC SYSTEMS

1

70213

KNOB

1шт.

2

87633953

ROLLER

Auxiliary Lever; Inc. 3 - 5

1шт.

3

L31166

NEEDLE BEARING

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

437131A1

ROLLER SHAFT

1шт.

7

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

Wear

6шт.

8

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

10

87637506

BRACKET

1шт.

11

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

2шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

87433108

BALL

3/8; Female; Left-Hand Thread

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

16

425-116

NUT,3/8" - 24, Gr 5

1шт.

17

87665340

ROD

Auxiliary

1шт.

18

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

19

437143A2

ADJUSTABLE CLEVIS,5/16" - 24

5/16

1шт.

20

427208A1

PIN ASSY.,7.9mm OD x 61.74mm L

5/16

1шт.

21

R47897

BELLOWS

Control, Primary

1шт.

22

84155734

RETAINER

1шт.

23

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

24

892-11006

LOCK WASHER,M6

4шт.

25

232-4646

LOCK NUT,3/8"-24, GC

1шт.

26

87637504

BRACKET

Linkage Mount

1шт.
