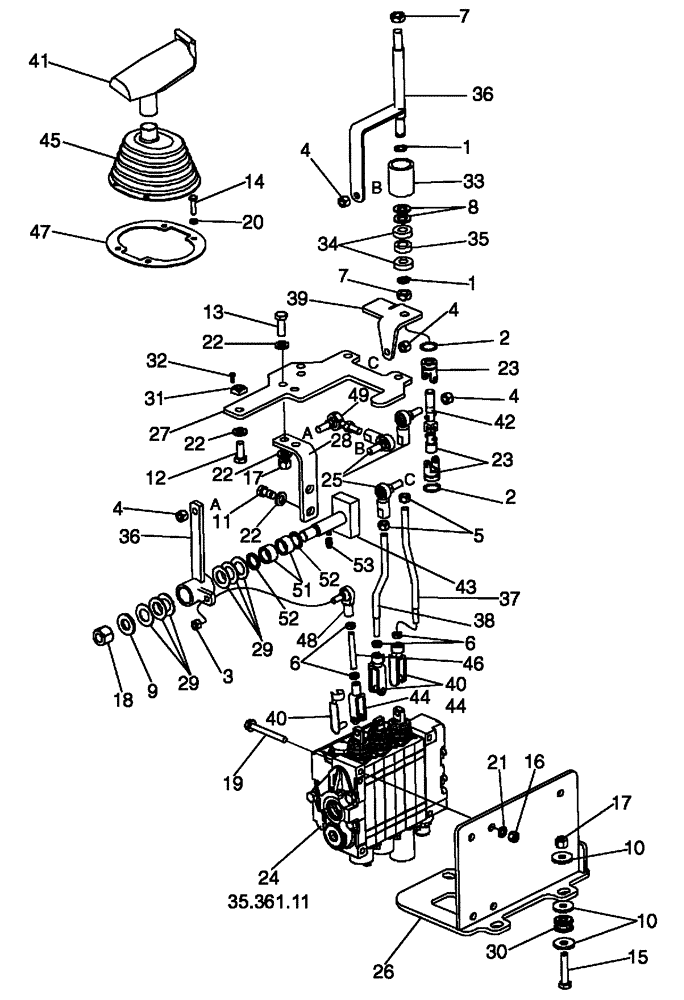

Запчасти Case 650L (35.355.02) - CONTROLS - LEVER AND LINKAGE, THREE SPOOL VALVE (35) - HYDRAULIC SYSTEMS

1

100-1450

SNAP RING,#50, Ext

2шт.

2

103-1187

SNAP RING,#87, Ext

2шт.

3

232-4605

LOCK NUT,5/16"-24, GC

1шт.

4

232-4646

LOCK NUT,3/8"-24, GC

4шт.

5

425-116

NUT,3/8" - 24, Gr 5

3шт.

6

425-155

JAM NUT,Jam, 5/16"-24, G5

4шт.

7

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

8

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

2шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

10

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

9шт.

11

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

2шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

15

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

3шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

18

832-10416

NUT,M16 x 2, Cl 8

1шт.

19

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

3шт.

20

892-11006

LOCK WASHER,M6

4шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

9шт.

23

83965600

UNIVERSAL JOINT

1шт.

24

87311632

HYDRAULIC VALVE

1шт.

25

87433108

BALL

Rod End Female 3/8-24 LH W/Hex Drive

3шт.

26

87626813

BRACKET

Valve Mounting

1шт.

27

87637504

BRACKET

Linkage Mounting

1шт.

28

87637506

BRACKET

1шт.

29

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

6шт.

30

296684A1

RUBBER MOUNTING

3шт.

31

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

3шт.

32

336371A1

PIN,4.88mm OD x 14.23mm L

3шт.

33

411098A1

BEARING HOUSING

Bearing

1шт.

34

411099A1

BALL BEARING,12.69mm ID x 28.57mm OD x 7.94mm W

2шт.

35

411100A1

SPACER, RING

1шт.

36

411309A1

LEVER ASSY.

1шт.

37

426917A3

LINKAGE

Lift

1шт.

38

426918A3

LINKAGE

Tilt

1шт.

39

426960A2

MOUNTING PLATE

1шт.

40

427208A1

PIN ASSY.,7.9mm OD x 61.74mm L

Spring Clevis

3шт.

41

R58490

HANDLE

1шт.

42

434759A1

SHAFT

Upper Pivot

1шт.

43

437131A1

ROLLER SHAFT

1шт.

44

437143A2

ADJUSTABLE CLEVIS,5/16" - 24

3шт.

45

438449A1

BOOT

Control

1шт.

46

446424A1

THREADED ROD

Angle

1шт.

47

449681A1

RETAINER

Boot

1шт.

48

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

Rod End Female

1шт.

49

R47941

JOINT TURNING

Rod End Male

1шт.

50

432365A2

LEVER

Roller, Angle; Includes 51 - 53

1шт.

51

L31166

NEEDLE BEARING

2шт.

52

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

2шт.

53

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
