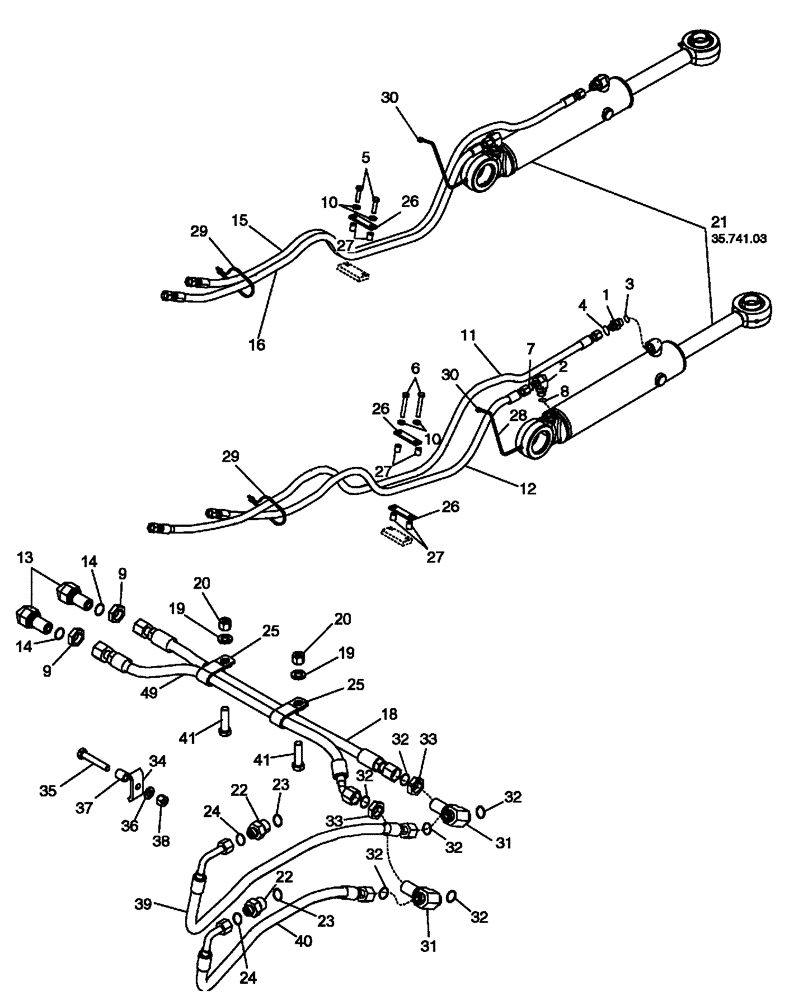

Запчасти Case 650L (35.310.03) - HYDRAULICS - ANGLE CIRCUIT (35) - HYDRAULIC SYSTEMS

1

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 3, 4

2шт.

2

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 7, 8

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

6

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face seal End

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

9

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

11

84131377

HOSE

To Rod End Of Cylinder - RH; 2040 mm (80 - 3/8 in)

1шт.

12

84131378

HOSE

To Closed End Of Cylinder - RH; 1460 mm (57 - 1/2 in)

1шт.

13

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 14

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

84135060

HOSE

To Rod End Of Cylinder - LH; 1955 mm (77 in)

1шт.

16

84135061

HOSE

To Closed End Of Cylinder - LH; 1575 mm (62 in)

1шт.

17

84147715

HOSE

Crossover; 650 mm (25-5/8 in)

1шт.

18

84141380

HOSE

Crossover; 650 mm (25-5/8 in)

1шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

21

87750251

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 342mm Stroke

Angle; 89 ID x 342 mm Stroke; See Figure 35.741.03

2шт.

22

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Inc. 23,24

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

25

L302731

CLAMP,19mm D Clamping Pipes

2шт.

26

435511A1

PLATE

4шт.

27

436110A1

SPACER

8шт.

28

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

Grease; Inc. 30

2шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

31

201-452

TEE,13/16"-16, Blkhd Br

Inc. 32

2шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

33

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

34

D138055

CLAMP

1шт.

35

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

36

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

37

436110A1

SPACER

1шт.

38

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

39

87637867

HOSE

Angle, Valve Top Port To Tee; 835 mm (32-7/8 in)

1шт.

40

87637868

HOSE

Angle, Valve Bottom Port To Tee; 680 mm (26-13/16 in)

1шт.

41

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

2шт.
