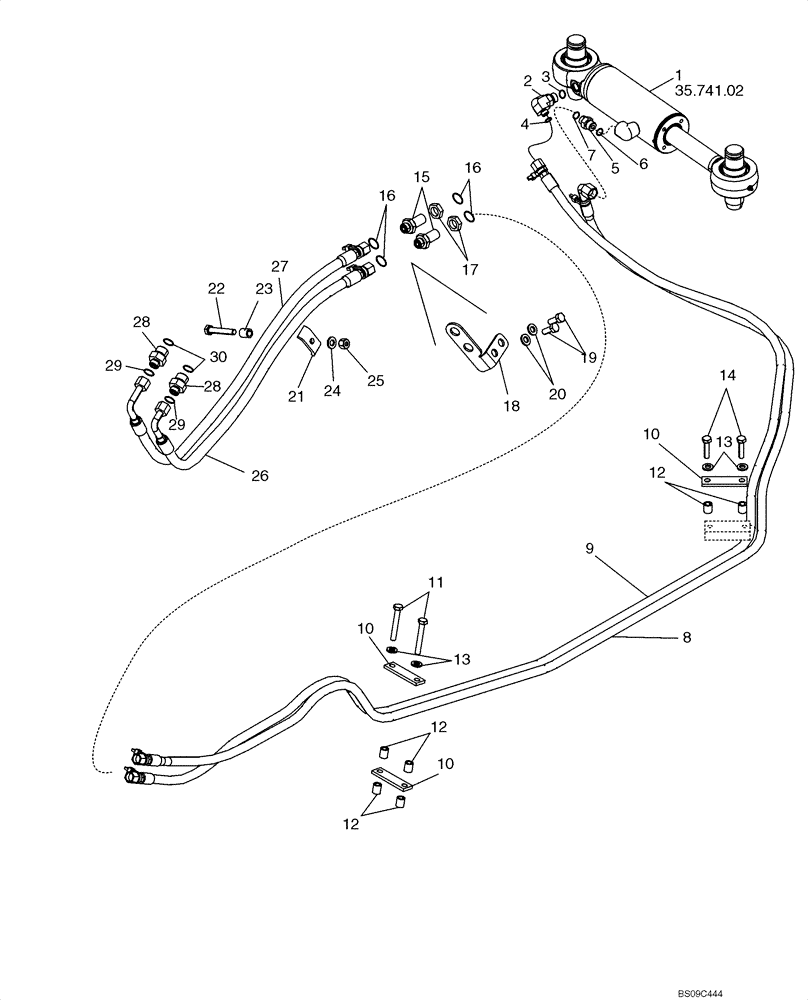

Запчасти Case 650L (35.310.02) - HYDRAULICS - TILT CIRCUIT (35) - HYDRAULIC SYSTEMS

1

412683A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 137mm Stroke

89 ID x 137 mm Stroke; Tilt

1шт.

1

412683A1R

REMAN-HYD CYLINDER

650L TIER 3 (HYDRO) (2/09-)

1шт.

1

412683A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 3, 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

5

435038A1

HYD CONNECTOR

Inc. 6, 7

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

8

84131379

HOSE

3100 mm (122-1/16 in); To Rod End Of Cylinder

1шт.

9

84131380

HOSE

3090mm (121-11/16 in); To Closed End Of Cylinder

1шт.

10

435511A1

PLATE

Clamp Plated

3шт.

11

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

12

436110A1

SPACER

6шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

15

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Inc. 16

2шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

17

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

2шт.

18

87665341

BRACKET

Hose Junction

1шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

21

D138055

CLAMP

Tube

1шт.

22

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

23

436110A1

SPACER

5шт.

24

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

26

87637872

HOSE

780 mm (30-3/4 in); Tilt Rod End

1шт.

27

87637871

HOSE

850 mm (33-1/2 in); Tilt Base End

1шт.

28

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Inc. 29, 30

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.
