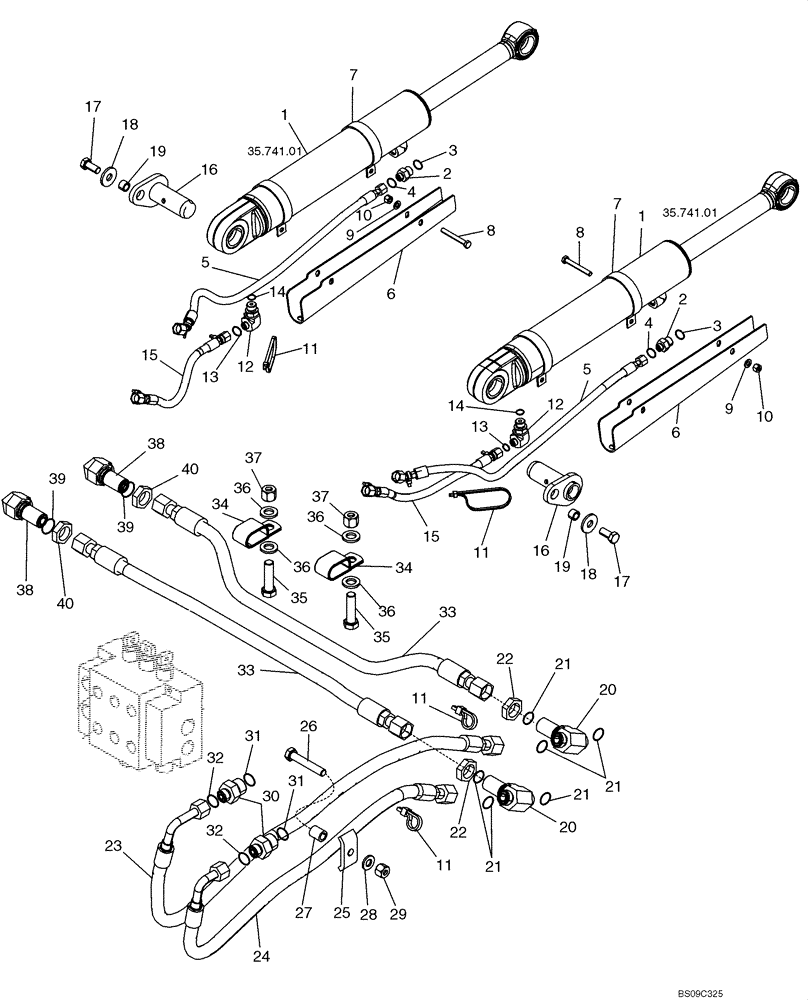

Запчасти Case 650L (35.310.01) - HYDRAULICS - LIFT CIRCUIT (35) - HYDRAULIC SYSTEMS

1

417854A1

CYLINDER ASSY.

89 ID x 395 mm Stroke, Lift

2шт.

1

87361535R

REMAN-HYD CYLINDER

650L TIER 3 (HYDRO) (2/09-), Reman for New PN 417854A1

2шт.

1

87361535C

CORE-HYD CYLINDER

Return Number

2шт.

2

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Inc. 3, 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

5

87728495

HOSE

775 mm (30-9/16 in); Lift Cylinder, Rod End

2шт.

6

87677673

GUARD

Lift Hose

2шт.

7

132115A1

CLAMP

4шт.

8

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

12

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 13, 14

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

15

87637863

HOSE

395 mm (15-9/16 in); Closed End

2шт.

16

87548432

LARGE PIN

PIN, LARGE

2шт.

17

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

18

419223A1

WASHER

2шт.

19

419041A1

SPACER

2шт.

20

201-452

TEE,13/16"-16, Blkhd Br

Inc. 21

2шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

22

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

23

87637865

HOSE

835 mm (32-7/8 in); Lift Valve to Tee, Rod End

1шт.

24

87637866

HOSE

680 mm (26-13/16 in); Lift Valve to Tee, Closed End

1шт.

25

D138055

CLAMP

1шт.

26

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

27

436110A1

SPACER

1шт.

28

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

30

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Inc. 31, 32

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

33

84141380

HOSE

Crossover; 650mm (25-5/8 in)

2шт.

34

L302731

CLAMP,19mm D Clamping Pipes

4шт.

35

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

2шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

37

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

38

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 39

2шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

40

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.
