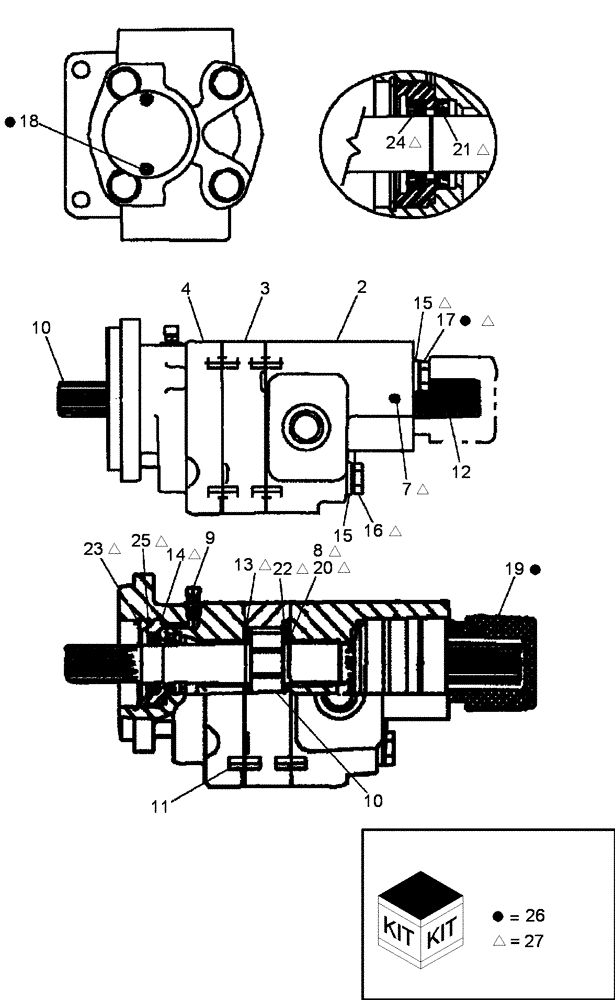

Запчасти Case 650L (35.304.01) - PUMP, HYDRAULIC - MODELS WITH PTO (35) - HYDRAULIC SYSTEMS

1

426958A2

HYDRAULIC PUMP,9.01 CC

, Serial Range: -NBDC60020

1шт.

426958A2R

REMAN-HYD PUMP

650L TIER 3 (HYDRO) Serial Range: -NBDC60020 (2/09-)

1шт.

426958A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84266850

HYDRAULIC PUMP,41.8 CC

HYDRAULIC PUMP, Start Serial: NBDC60021

1шт.

84266850R

REMAN-HYD PUMP

650L TIER 3 (HYDRO), Start Serial: NBDC60021 (2/09-)

1шт.

48009544

SEAL KIT

For use on 84266850

1шт.

48009642

SEAL KIT

For use on 84266850

1шт.

84266850C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

87392167

O-RING

Rear Shaft Seal Retainer (Not Shown)

1шт.

6

87392104

SEAL

Rear (Not Shown)

1шт.

7

NSS

NOT SOLD SEPARAT

Set Screw, Rear Shaft Seal Retainer

2шт.

8

NSS

NOT SOLD SEPARAT

Back-Up Seal, Thrust Plate

2шт.

9

NSS

NOT SOLD SEPARAT

Air Vent

1шт.

10

NSS

NOT SOLD SEPARAT

Gear Shaft

1шт.

11

NSS

NOT SOLD SEPARAT

Pin

4шт.

12

NSS

NOT SOLD SEPARAT

Bearing Shaft

1шт.

13

NSS

NOT SOLD SEPARAT

Square-Section Seal, Gear Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Retainer, Outer Front Shaft Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

4шт.

16

NSS

NOT SOLD SEPARAT

Capscrew

2шт.

17

NSS

NOT SOLD SEPARAT

Capscrew

2шт.

18

NSS

NOT SOLD SEPARAT

Capscrew, Socket Head

2шт.

19

NSS

NOT SOLD SEPARAT

Cap, Shaft

1шт.

20

NSS

NOT SOLD SEPARAT

Channel Seal, Thrust Plate

1шт.

21

87392106

SEAL

Inner Front Shaft

1шт.

22

NSS

NOT SOLD SEPARAT

Thrust Plate, Boxed

2шт.

23

NSS

NOT SOLD SEPARAT

Snap Ring, Seal Retainer

1шт.

24

87392105

SEAL

Outer Front Shaft

1шт.

25

87392169

O-RING

Outer Front Shaft Seal Retainer

1шт.

26

87392109

HYD PUMP REPAIR KIT

1шт.

27

87392107

HYD PUMP REPAIR KIT

1шт.
