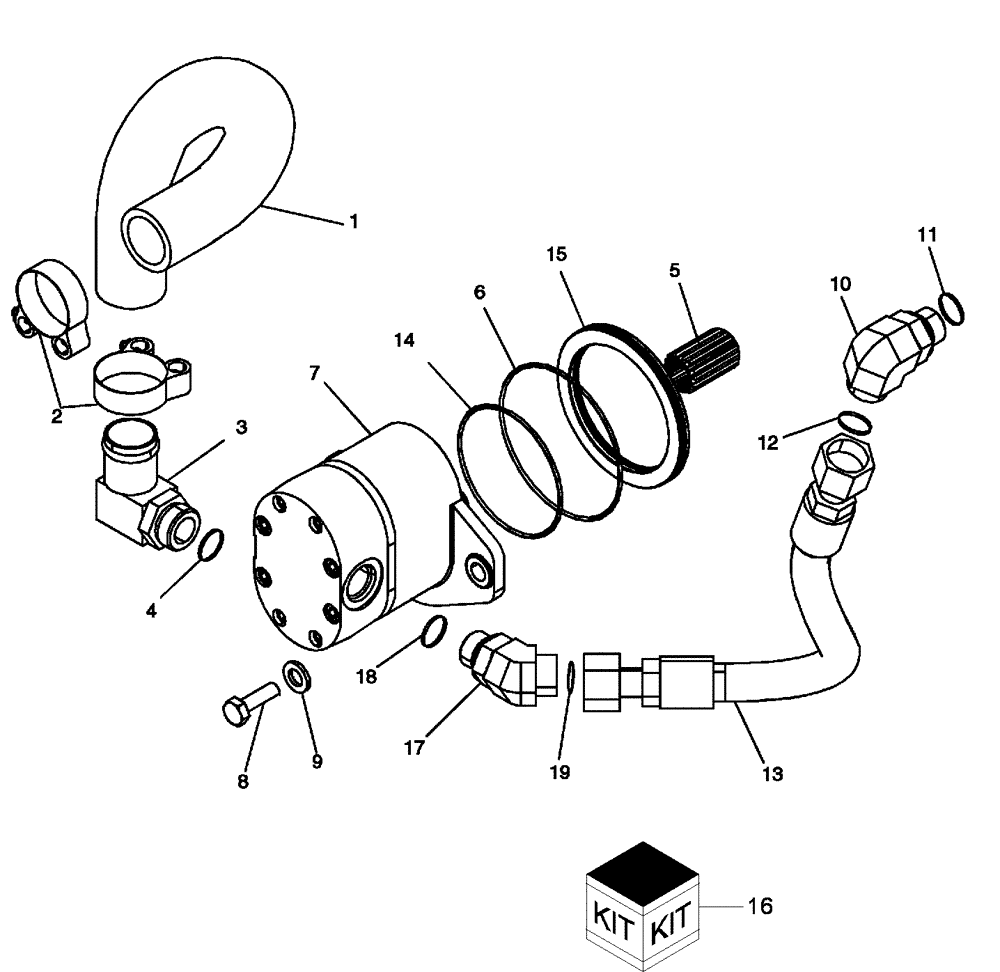

Запчасти Case 650L (35.300.04) - HYDRAULICS, EQUIPMENT - RESERVOIR TO PUMP AND CONTROL VALVE (W/O PTO) (35) - HYDRAULIC SYSTEMS

1

87668192

HOSE

680 mm (26-13/16 in) Pump Supply

1шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

2шт.

3

217-222

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-5/16" - 12 Male ORB

Inc. 4

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

434451A1

SPLINE

1шт.

6

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

7

396801A2

PUMP, HYDRAULIC,41 CC

1шт.

396801A2R

REMAN-HYD PUMP

650L TIER 3 (2/09-)

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

9

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

10

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 11, 12

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

13

84142442

HOSE

515 mm (20-5/16 inch); Pump To Valve Inlet

1шт.

14

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

15

87673267

ADAPTER

Pump

1шт.

16

361942A1

SEAL KIT

Hydraulic Pump, Minor

1шт.

17

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

Inc. 18, 19

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
