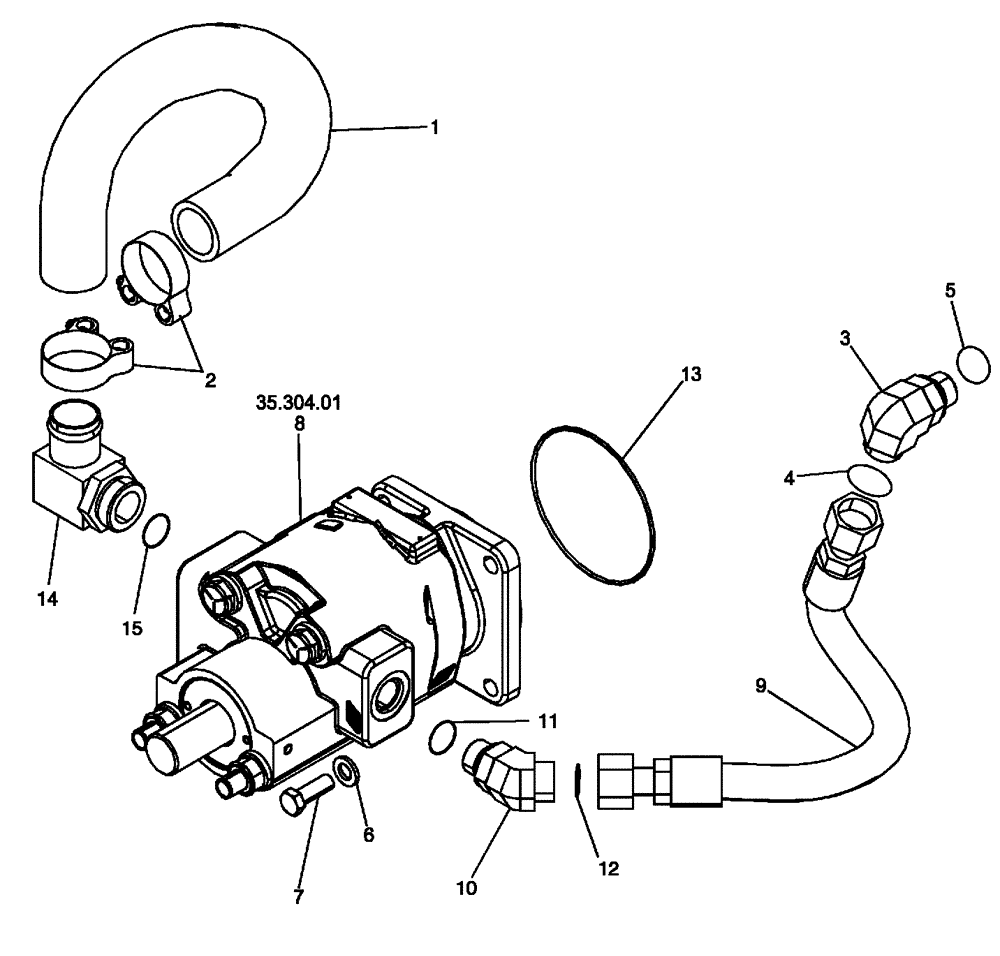

Запчасти Case 650L (35.300.03) - HYDRAULICS, EQUIPMENT - RESERVOIR TO PUMP AND CONTROL VALVE (WITH PTO) (35) - HYDRAULIC SYSTEMS

1

87668192

HOSE

660 mm (26-13/16 in) Pump Supply

1шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

Includes Hardware

2шт.

3

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 4, 5

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

8

426958A2

HYDRAULIC PUMP,9.01 CC

, Serial Range: -NBDC60020

1шт.

426958A2R

REMAN-HYD PUMP

650L TIER 3 (HYDRO) Serial Range: -NBDC60020 (2/09-)

1шт.

426958A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

84266850

HYDRAULIC PUMP,41.8 CC

HYDRAULIC PUMP, Start Serial: NBDC60021

1шт.

84266850R

REMAN-HYD PUMP

650L TIER 3 (HYDRO), Start Serial: NBDC60021 (2/09-)

1шт.

84266850C

CORE-HYDRAULIC PUMP

Return Number

1шт.

9

84142442

HOSE

515 mm (20-5/16 inch); Pump To Valve Inlet

1шт.

10

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

Inc. 11, 12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

13

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

, Serial Range: -NBDC60020

1шт.

84472119

O-RING,0.07" Thk x 4.739" ID, -48, Cl 5, 75 Duro

O-RING, Start Serial: NBDC60021

1шт.

14

217-365

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

Inc. 15

1шт.

15

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
