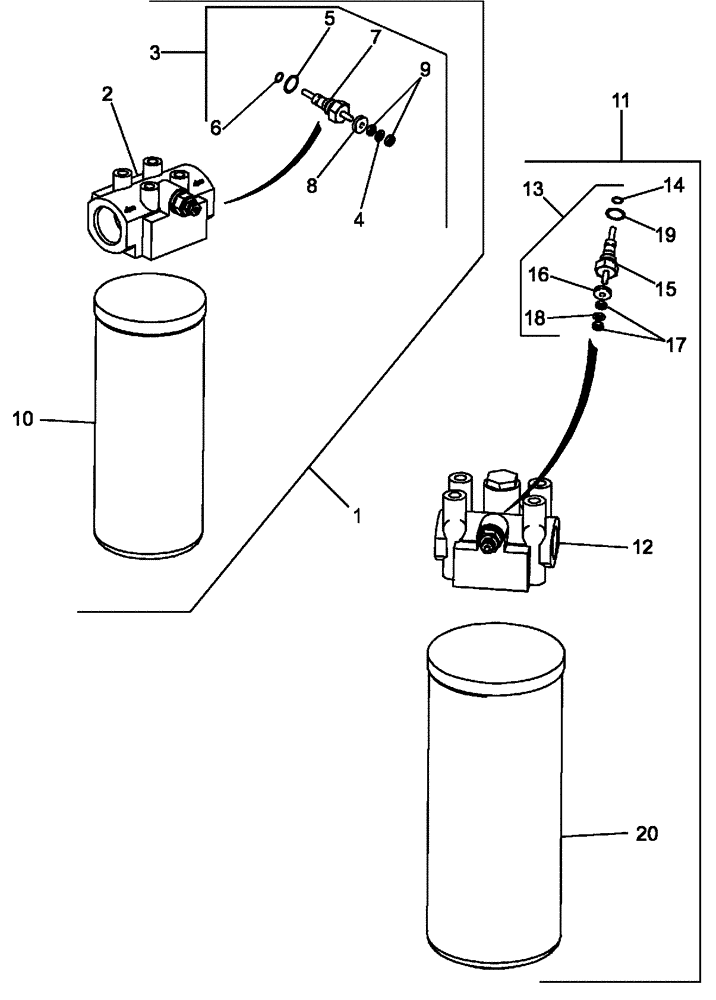

Запчасти Case 650L (35.300.02) - FILTER, HYDRAULIC OIL (35) - HYDRAULIC SYSTEMS

1

87652240

FILTER ASSY

Inc.2-10

1шт.

2

NSS

NOT SOLD SEPARAT

Filter Head

1шт.

3

N13268

PRESSURE SWITCH

Inc. 4-9

1шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Indicator

1шт.

8

NSS

NOT SOLD SEPARAT

Washer, Special; Red, White

1шт.

9

129-667

NUT,#10-32, LH

2шт.

10

87478098

HYDRAULIC OIL FILTER

3-11/16 OD x 7-7/8 in lg; Element

1шт.

11

418237A1

FILTER ASSY

4-5/8 OD x 14-11/16 in lg; Inc. 12-20

1шт.

12

NSS

NOT SOLD SEPARAT

Head

1шт.

13

N13268

PRESSURE SWITCH

Inc. 14-19

1шт.

14

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Indicator

1шт.

16

NSS

NOT SOLD SEPARAT

Washer, Special; Red, White

1шт.

17

129-667

NUT,#10-32, LH

2шт.

18

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

254353A1

HYDRAULIC OIL FILTER

4-5/8 OD x 11-5/8 in lg

1шт.
