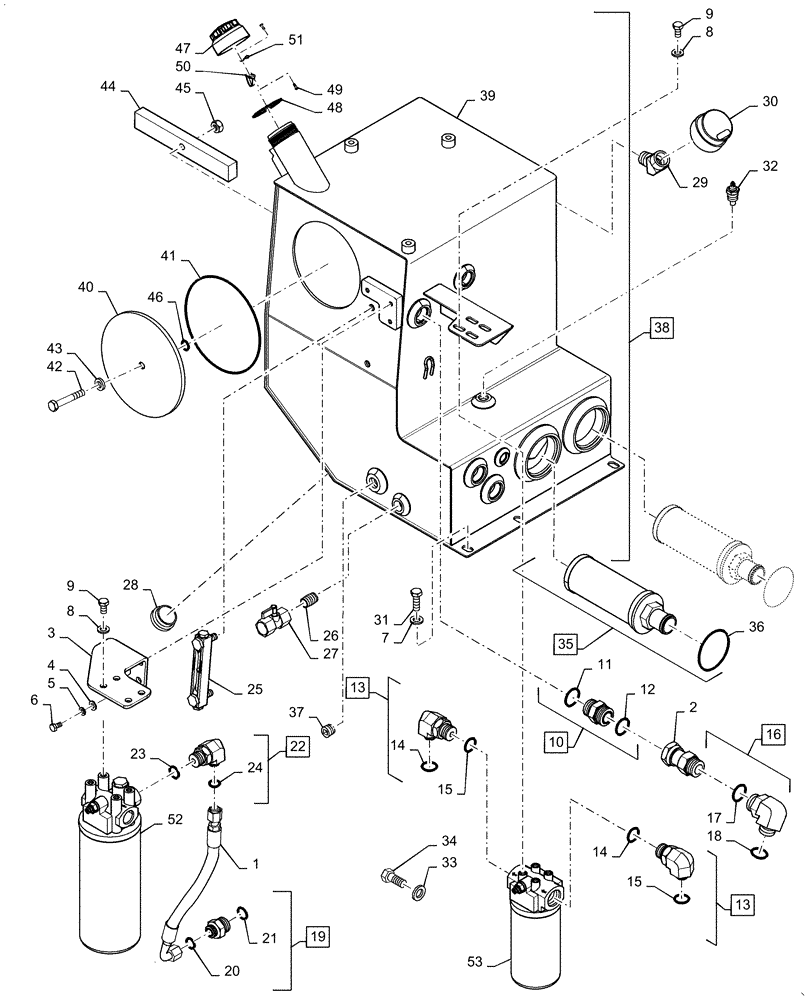

Запчасти Case 650L (35.300.01) - RESERVOIR, HYDRAULIC - COVERS (35) - HYDRAULIC SYSTEMS

1

87643119

HOSE

Filter

1шт.

2

87672177

HYD CONNECTOR

1шт.

3

87639219

BRACKET, SUPPORTING

Mount Filter

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

5

892-11008

LOCK WASHER,8mm ID

3шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

10

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 11,12

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

13

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 14,15

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 17,18

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

19

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

Inc. 20,21

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

22

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 23,24

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

25

226456A1

LEVEL GAUGE

1шт.

26

221-1185

FITTING

1шт.

27

86984713

SHUT-OFF VALVE

One Way

1шт.

28

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

1шт.

29

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

30

R42714

BREATHER

1шт.

31

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

32

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

33

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

5шт.

34

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

5шт.

35

426784A1

FILTER STRAINER

Suction Strainer; Inc. 36

2шт.

36

84153256

O-RING,3mm Thk x 83mm ID, 70 Duro

O-Ring

2шт.

37

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

38

87617545

TANK

Hydraulic; Inc. 39 - 51

1шт.

39

NSS

NOT SOLD SEPARAT

See 38

1шт.

40

L128352

COVER

Hydraulic Tank Access

1шт.

41

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1шт.

42

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

43

L78045

WASHER

1шт.

44

L50741

BAR

1шт.

45

131-510

LOCK NUT,1/2"-13

1шт.

46

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

47

L128669

CAP

1шт.

48

87557921

GASKET,43mm ID x 61mm OD x 3mm Thk

Cap

1шт.

49

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

50

R48634

FASTENER

Swivel Chain

1шт.

51

R47786

CHAIN (CE)

Fuel Cap

1шт.

52

418237A1

FILTER ASSY

1шт.

53

426336A1

FILTER ASSY

1шт.
