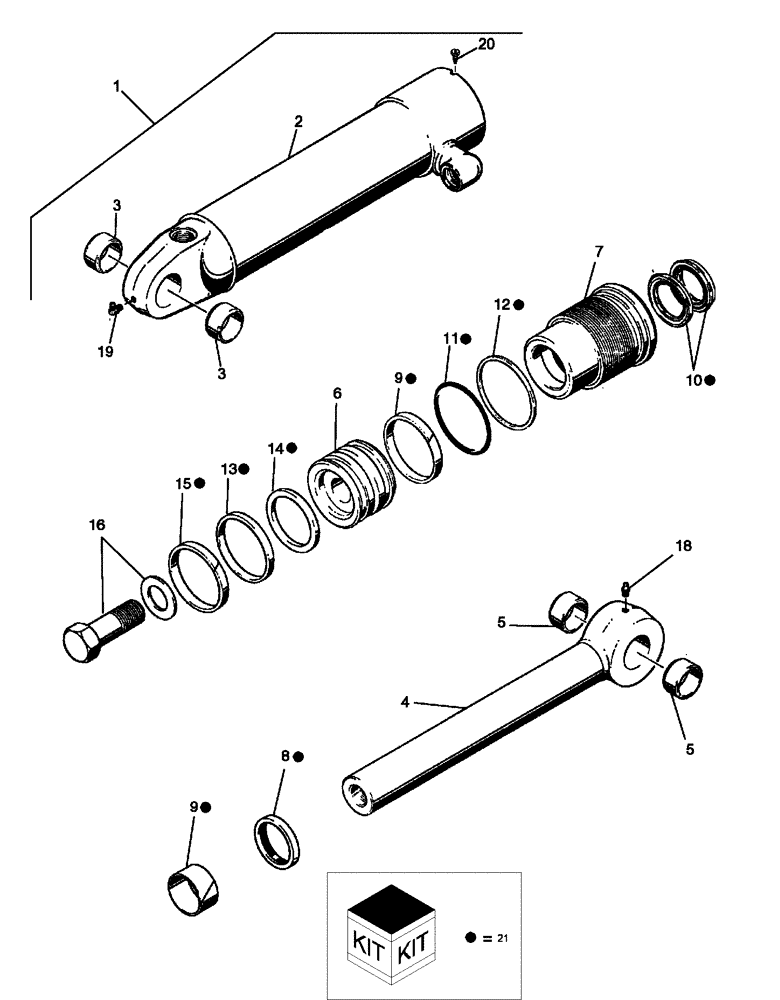

Запчасти Case 650L (35.100.06) - CYLINDER, RIPPER (35) - HYDRAULIC SYSTEMS

1

86994129

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Ripper; Right-Hand; Inc. 2 - 19

1шт.

1

86994129R

REMAN-HYD CYLINDER

650L CRAWLER DOZER TIER 3 (HYDRO), 83 ID x 206 mm strk; Ripper; Right-Hand (2/09-)

1шт.

1

86994129C

CORE-HYD CYLINDER

Return Number

1шт.

1

86994131

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Ripper; Left-Hand; Inc. 2 - 19

1шт.

1

86994131R

REMAN-HYD CYLINDER

650L CRAWLER DOZER TIER 3 (HYDRO), 83 ID x 206 mm strk; Ripper; Left-Hand (2/09-)

1шт.

1

86994131C

CORE-HYD CYLINDER

Return Number

1шт.

2

G100608

TUBE,16.46" L

Tube; Right-Hand; Inc. 3

1шт.

2

G100609

TUBE,16.46" L

Tube; Left-Hand; Inc. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

4

G100617

ROD

Inc. 5

1шт.

5

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

6

G100642

PISTON

1шт.

7

1542972C1

CYLINDER END CAP

1шт.

8

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

10

1542875C1

SEAL KIT,44.4mm Rod

1шт.

11

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

13

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

14

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

15

S109445

RING,82.55mm OD, Ext

2шт.

16

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1 x 2-1/2; With Washer

1шт.

17

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

(Not Shown)

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

20

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

21

1543265C1

SEAL KIT

1шт.
