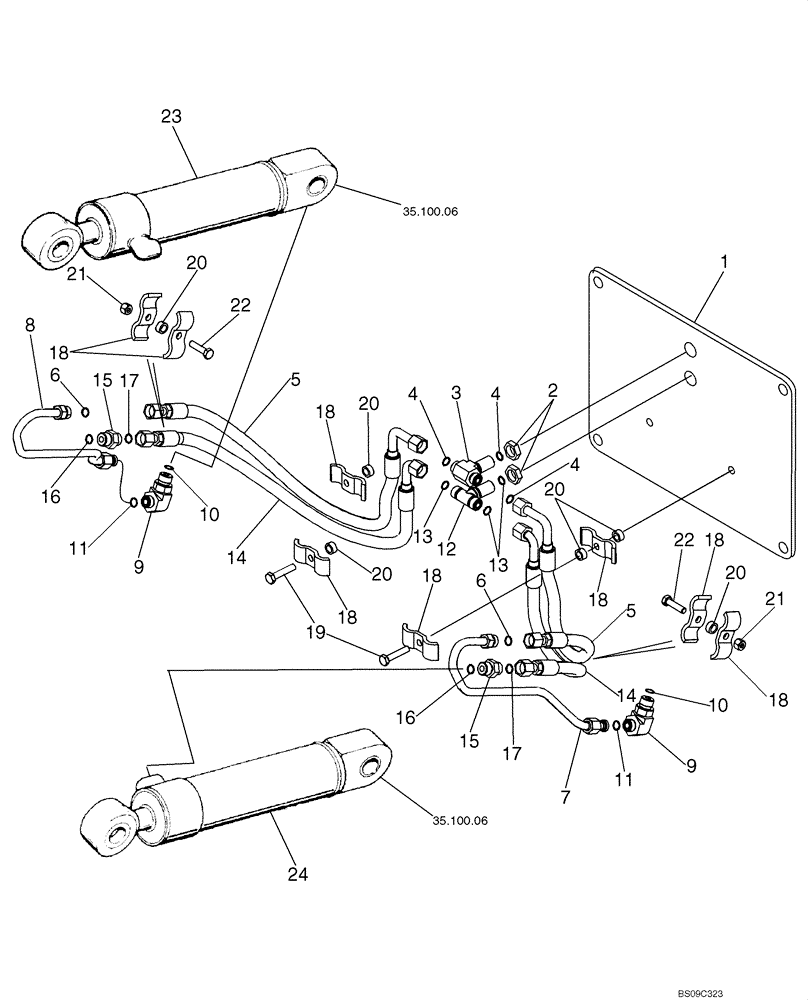

Запчасти Case 650L (35.100.05) - HYDRAULICS - RIPPER, REAR OF TRACTOR TO CYLINDERS (35) - HYDRAULIC SYSTEMS

1

84156087

COVER PLATE

1шт.

2

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

3

201-452

TEE,13/16"-16, Blkhd Br

Inc. 4; Upper Port Of Control Valve

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

3шт.

5

87715343

FLEXIBLE HOSE

735 mm (28 - 15/16 in); Upper; To Closed End Of Cylinder

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

2шт.

7

87405448

HYD TUBE,12.7 mm OD x 257.7, 125.3 mm L

Right-Hand Cylinder

1шт.

8

87405449

HYD TUBE,12.7 mm OD x 257.7, 125.3 mm L

Left-Hand Cylinder

1шт.

9

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 10, 11

2шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

12

87408137

TEE

Restrictor; Inc. 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

3шт.

14

87715344

FLEXIBLE HOSE

730 mm (28 - 3/4 in); Lower; To Rod End Of Cylinder

2шт.

15

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 16, 17

2шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Boss End

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

18

434130A1

HOSE CLAMP

8шт.

19

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

20

87311572

SPACER,12.7mm x 19mm x 9mm

6шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

23

86994131

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Left-Hand; Ripper

1шт.

23

86994131R

REMAN-HYD CYLINDER

650L CRAWLER DOZER TIER 3 (HYDRO), 83 ID x 206 mm strk; Left-Hand (2/09-)

1шт.

23

86994131C

CORE-HYD CYLINDER

Return Number

1шт.

24

86994129

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Right-Hand; Ripper

1шт.

24

86994129R

REMAN-HYD CYLINDER

650L CRAWLER DOZER TIER 3 (HYDRO), 83 ID x 206 mm strk; Right-Hand; Ripper (2/09-)

1шт.

24

86994129C

CORE-HYD CYLINDER

Return Number

1шт.
