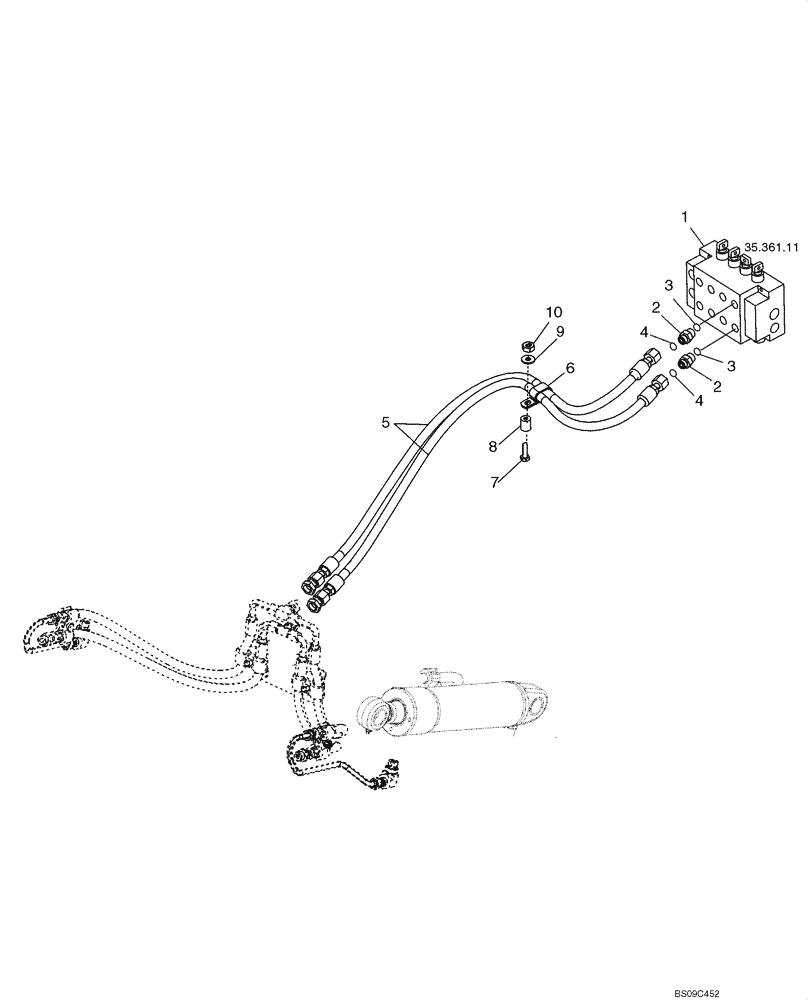

Запчасти Case 650L (35.100.04) - HYDRAULICS - RIPPER, VALVE TO REAR OF TRACTOR (35) - HYDRAULIC SYSTEMS

1

87311631

HYDRAULIC VALVE

Four Spool Control Valve

1шт.

2

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 3, 4

2шт.

3

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

87715342

FLEXIBLE HOSE

1225 mm (48-1/4 in); 4th Spool Supply; Control Valve to Rear of Tractor

2шт.

6

L302731

CLAMP,19mm D Clamping Pipes

1шт.

7

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

8

487704R1

SPACER,3/4" Tube x 1 3/16"

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

412126

NUT,M12 x 1.75

1шт.
