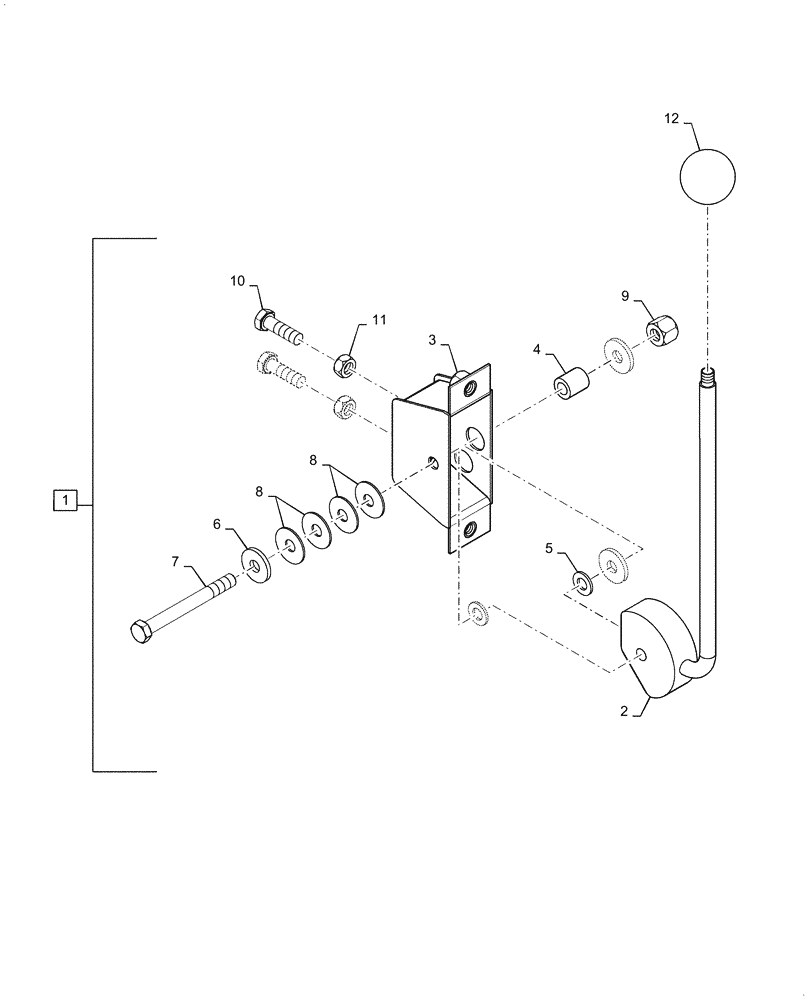

Запчасти Case 650L (33.202.04[02]) - LH, LOCKING HANDLE, CAB (33) - BRAKES & CONTROLS

1

84233894

LEVER

LH, Assembly, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Lockout Box, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

5

44910565

SEALING WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

6

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

3шт.

7

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

8

R58742

WASHER

Belleville

4шт.

9

232-1446

NUT,3/8"-16, GC

1шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

76067250

HANDLE GRIP

Lockout Lever

1шт.
