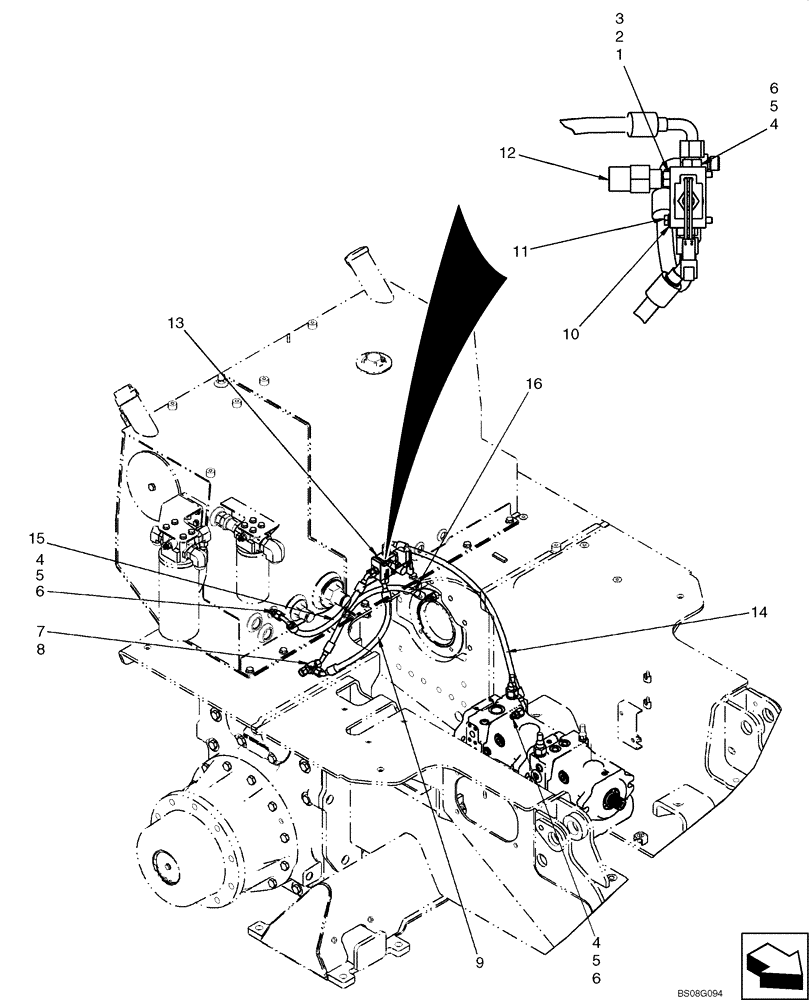

Запчасти Case 650L (33.202.03) - BRAKE LINES (33) - BRAKES & CONTROLS

1

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Inc. 2, 3

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss End

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 5, 6

5шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

7

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Inc. 8

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.

9

84125289

HOSE

Brake Supply; 420 mm (16 - 9/16 in)

1шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

12

87368476

PRESSURE SWITCH

1шт.

13

87611831

SOLENOID

1шт.

14

87668182

HOSE

Solenoid Supply, 750 mm (29 - 9/16 in)

1шт.

15

87668183

HOSE

Solenoid Return, 429 mm (16 - 15/16 in)

1шт.

16

436729A1

HOSE ASSY.

Brake Main, 585 mm (23 - 1/16 in)

1шт.
