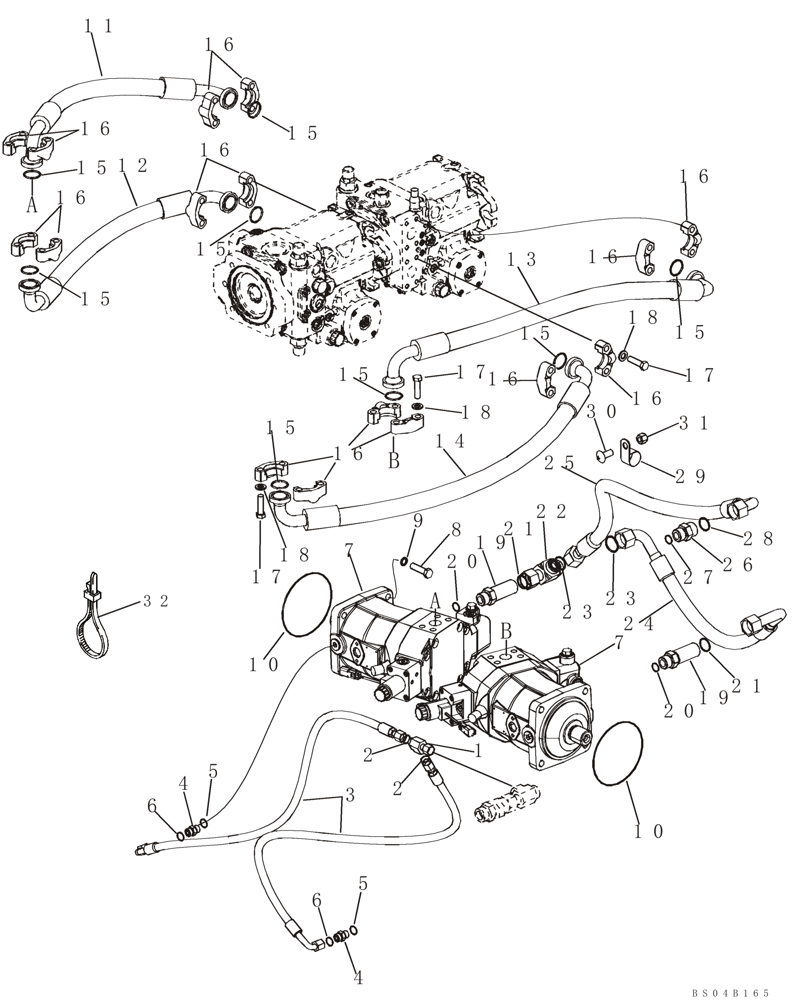

Запчасти Case 650K (06-03) - HYDROSTATICS - MOTOR, DRIVE (06) - POWER TRAIN

1

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Incl. Ref 2

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

3

446077A1

HOSE ASSY.

1200 mm (47-1/4 in); Pump Drain To Motor Drain

2шт.

4

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 5, 6

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

7

401629A2

HYDROSTATIC MOTOR,80CC

Component Parts Not Available At Time Of Printing; Use With Loctite 767 On Shafts

2шт.

7

401629A2R

REMAN-HYDROSTAT MOTO

Remanufactured

2шт.

7

401629A2C

CORE-HYDROSTAT MOTOR

Return Number

2шт.

8

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

Use With Loctite 243

8шт.

9

892-11012

LOCK WASHER,M12

8шт.

10

238-5161

O-RING,0.103" Thk x 5.438" ID, -161, Cl 5, 75 Duro

2шт.

11

401652A1

HOSE ASSY.,25.4mm ID x 685mm L, SAE 100R15

685 mm (27 in); Rear Pump To Left-Hand Motor; Upper

1шт.

12

401653A1

HOSE ASSY.,25.4mm ID x 675mm L, SAE 100R15

675 mm (26-5/8 in); Rear Pump To Left-Hand Motor; Lower

1шт.

13

401650A1

HOSE ASSY.

940 mm (37 in); Front Pump To Right-Hand Motor; Upper

1шт.

14

401651A1

HOSE ASSY.,25.4mm ID x 991mm L, SAE 100R15

991 mm (39-1/64 in); Front Pump To Right-Hand Motor; Lower

1шт.

15

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

8шт.

16

86980732

CLAMP

Split Flange

16шт.

17

864-12045

HEX SOC SCREW,M12 x 45mm, Cl 8.8

Replaces 814-12045

32шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

32шт.

19

201-176

HYD CONNECTOR,1 3/16"-12 x 1 1/16"-12, ORFS Lg

Incl. Ref 20, 21

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

22

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Incl. Ref 23

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

24

429599A1

HOSE ASSY.

595 mm (23-7/16 in); Case Drain Crossover

1шт.

25

429600A1

HOSE ASSY.

895 mm (35-1/4 in); Case Drain To Tank

1шт.

26

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 27, 28

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

29

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

30

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

1шт.

31

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
