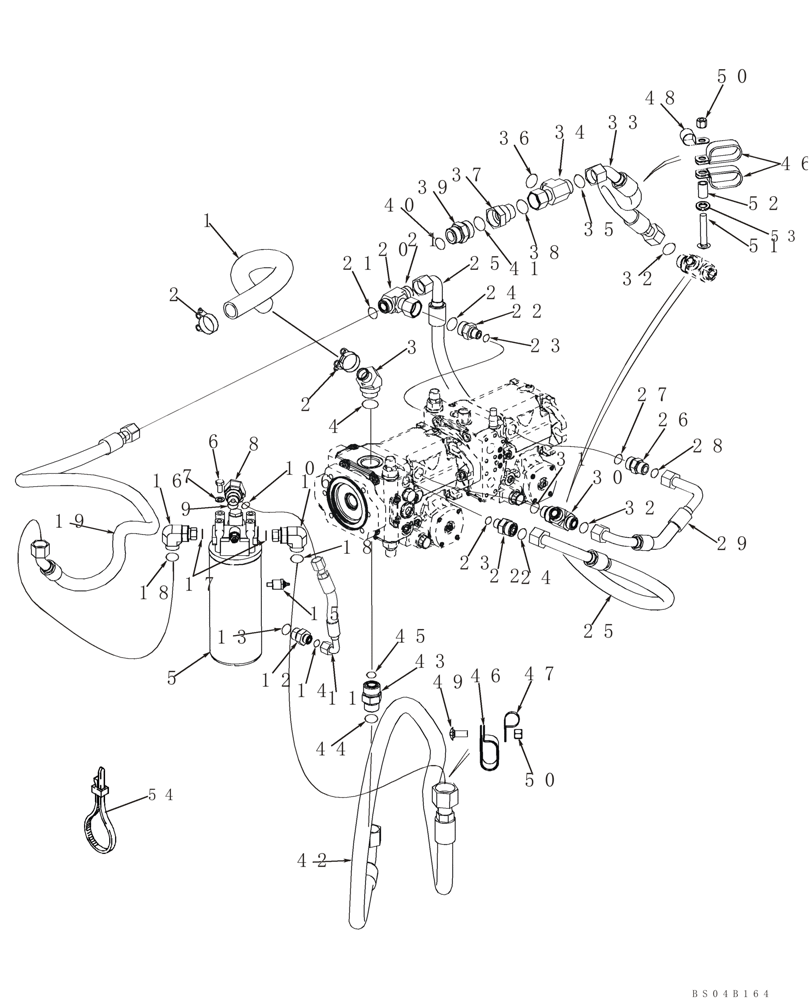

Запчасти Case 650K (06-02) - HYDROSTATICS - PUMP, TANDEM SUPPLY AND RETURN TO FILTER (06) - POWER TRAIN

1

87351690

HOSE,38.10 mm ID x 849.00 mm, SAE 100R4

849 mm (33-7/16 in) Length Hose; Supply From Tank; Replaces 429371A1 (900 mm (35-7/16 in)

1шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

2шт.

3

217-327

FITTING,45 Degree Elbow, 1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

Incl. Ref 4

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

5

418237A1

FILTER ASSY

See Figure 06-09

1шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Incl. Ref 9, 10

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

11

435014A1

HOSE ASSY.

252 mm (9-15/16 in); Filter To Tank; Charge Filter Bypass

1шт.

12

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

Incl. Ref 13, 14

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

15

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil

1шт.

16

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl. Ref 17, 18

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

19

430511A1

HOSE ASSY.

1800 mm (70-7/8 in); Filter Outlet To Hydrostatic Pump

1шт.

87313817

CONDUIT

1-1/4 ID, Used On 430511A1 Hose, If Used

1шт.

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Used On 87313817 Sleeve If Used

2шт.

20

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

Incl. Ref 21

1шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

22

201-141

HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB

Incl. Ref 23, 24

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

25

430512A2

HOSE ASSY.

980 mm (38-5/8 in); Filter Outlet Crossover

1шт.

26

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 27, 28

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

29

429711A1

HOSE ASSY.

335 mm (13-1/4 in); Case Drain

1шт.

30

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. Ref 31, 32

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

2шт.

33

429712A1

HOSE ASSY.

975 mm (38-7/16 in); Case Drain To Tank

1шт.

34

447886A1

TEE

Incl. Ref 35, 36

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

37

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

Incl. Ref 38

1шт.

38

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

39

86988878

VALVE, CHECK

1 ORFS x 1 ORD; To Tank ; Incl. Ref 40, 41

1шт.

40

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

41

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

42

430510A1

HOSE ASSY.

1730 mm (68-1/8 in); Filter Inlet

1шт.

43

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 44, 45

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

45

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

46

242999A1

CLAMP

Double Clamp

3шт.

47

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

48

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

49

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

1шт.

50

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

51

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

52

487704R1

SPACER,3/4" Tube x 1 3/16"

1шт.

53

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

54

87429171

STRAP

Brown, 203 mm (8 inch)

1шт.

54

87429172

STRAP

Red, 203 mm (8 inch)

2шт.
