Запчасти Case 650K (04-13) - HARNESS, FRONT CONSOLE AND SWITCHES - CAB (04) - ELECTRICAL SYSTEMS

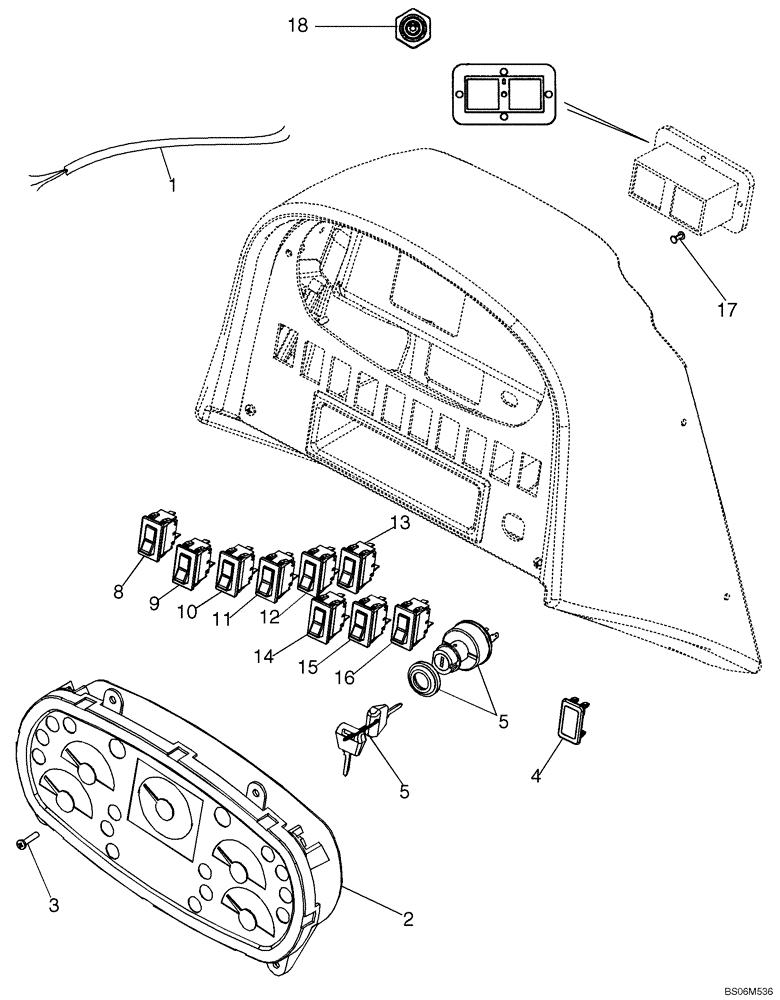

Схема запчастей Case 650K - (04-13) - HARNESS, FRONT CONSOLE AND SWITCHES - CAB (04) - ELECTRICAL SYSTEMS
18
3
10
8
5
15
12
14
2
1
9
17
11
16
4
5
13

Артикул

Название

Примечание

Количество

1

87596047

WIRE HARNESS

Harness, Wire; Front Console; Dashboard; Cab Models

1шт.

2

87454942

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Instrument Cluster; Component Parts Not Serviced Separately; See Fig 04-17

1шт.

2

87454942R

REMAN-INSTR CLUSTER

1шт.

2

87454942C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

87026656

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

M5 X 25

2шт.

4

86000535

PLUG,1.427" x .62", Plastic

Switch Hole; Models without Grid Heater; If used

1шт.

5

282775A1

IGNITION SWITCH

Includes Padded Keys 1964831C2

1шт.

8

87536793

LIGHT SWITCH

Rocker; Front Work Lamps

1шт.

9

87536792

LIGHT SWITCH

Rocker; Rear Work Lamps

1шт.

10

87410552

WINDSHIELD WIPER SWI

Rocker; Front and Rear Windshield Wipers

1шт.

11

386788A1

WINDSHIELD WIPER SWI

Rocker; Rear Windshield Washers

1шт.

12

87410551

WINDSHIELD WIPER SWI

Rocker; Left-Hand and Right-Hand Door Window Wipers

1шт.

13

87411310

WINDSHIELD WASHER SW

Rocker; Left-Hand and Right-Hand Door Window Washers

1шт.

14

87410087

ROCKER SWITCH

Rocker; Momentary, Up/Down

1шт.

15

87410091

ROCKER SWITCH

Rocker; Momentary, Display

1шт.

16

386852A2

SWITCH

Rocker; Horn

1шт.

17

86837478

RIVET,Pop, 1/8" x .650"

1/8 x 21/32 Rivet; Dashboard Harness to Rear of Console

4шт.

18

87312549

HORN

Warning Buzzer

1шт.

Выбрано товаров: 18
