(04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR)

Запчасти Case 650K (04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (04) - ELECTRICAL SYSTEMS

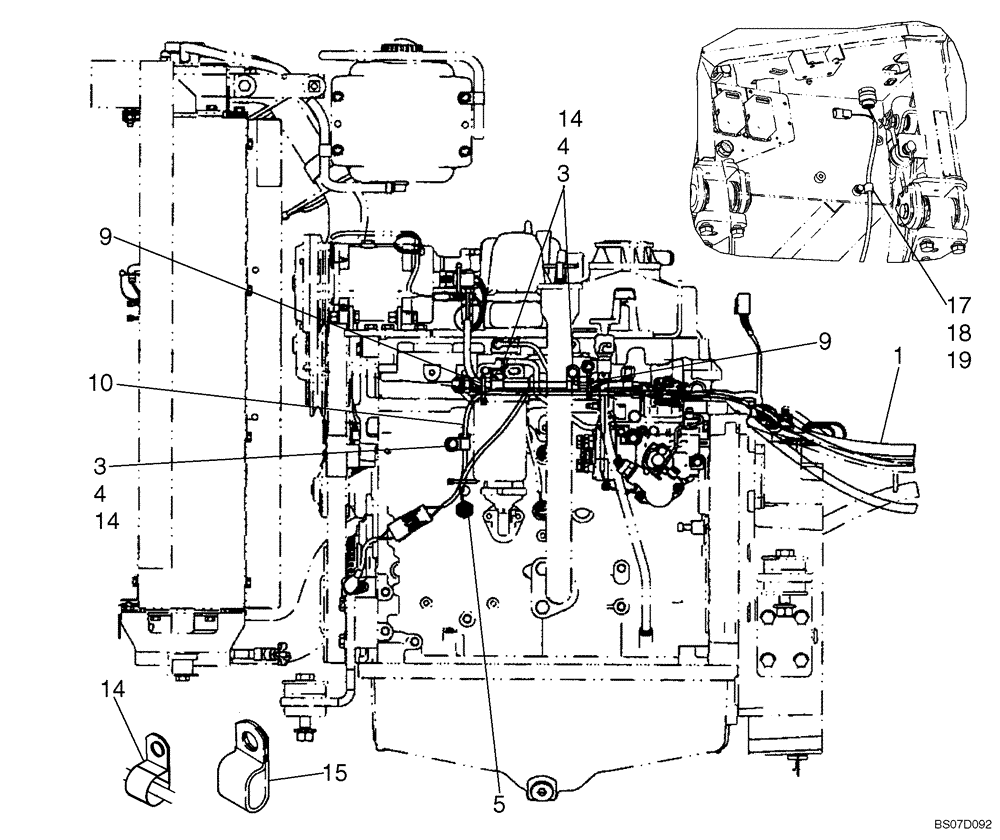

Схема запчастей Case 650K - (04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (04) - ELECTRICAL SYSTEMS
3
5
14
1
10
15
9
18
3
9
4
14
19
17
14
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87589071

WIRE HARNESS

Harness, Wire Main, W Round Connector for Microcontroller ; If Used

1шт.

3

892-11008

LOCK WASHER,8mm ID

3шт.

4

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

5

277016A1

PRESSURE SWITCH

Engine Oil, Incl. 637-62081 O-ring

1шт.

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

10

87310025

WIRE HARNESS

Jumper Harness-Engine Speed Pickup

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

15

242999A1

CLAMP

Double

2шт.

17

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

18

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

19

892-11010

LOCK WASHER,M10

1шт.
