Запчасти Case 650K (04-09) - HARNESS, ENGINE (RIGHT-HAND SIDE) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

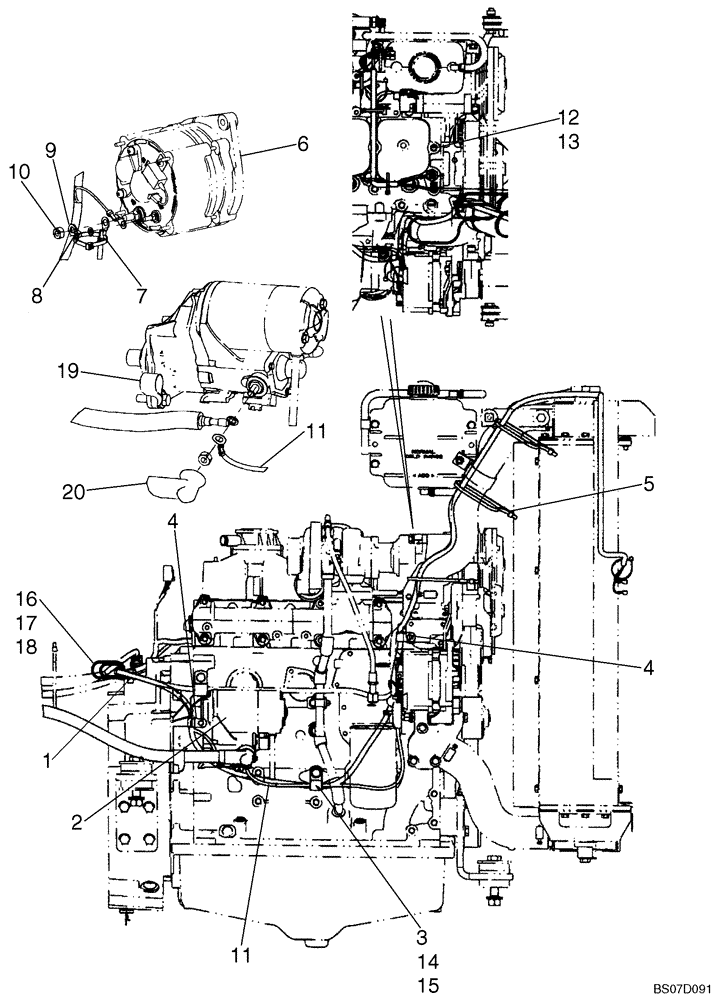

Схема запчастей Case 650K - (04-09) - HARNESS, ENGINE (RIGHT-HAND SIDE) - ALTERNATOR (04) - ELECTRICAL SYSTEMS
1
4
19
4
6
2
16
18
11
7
15
13
5
17
12
10
20
11
14
8
9
3

Артикул

Название

Примечание

Количество

1

87589071

WIRE HARNESS

Harness, Wire Main, W Round Connector for Microcontroller ; If Used

1шт.

2

86992395

STARTER MOTOR,12V, 2.7kW

See Figure 04-01

1шт.

2

86992395R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

2

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

3

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

4

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Use Existing Hardware At Lower Inner Muffler Support Bracket; If Used

2шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

6

A187873

ALTERNATOR,12V, 65A

Models Without Air Conditioning; See Figure 04-02

1шт.

6

A187623

ALTERNATOR

Models With Air Conditioning; See Figure 04-03

1шт.

6

A187873GV

ALTERNATOR

Value, Models With Air Conditioning

1шт.

7

892-11005

LOCK WASHER,M5

1шт.

8

824-1405

NUT,M5, Cl 5

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

87423926

ELECTRIC CABLE,675mm L

Starter Alternator

1шт.

12

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil

1шт.

13

280942

NUT,Keps, w/LW,#10-32

NUT

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

892-11012

LOCK WASHER,M12

2шт.

17

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

18

242999A1

CLAMP

Double

2шт.

19

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

20

L126713

BOOT

Electrical

1шт.

Выбрано товаров: 24
