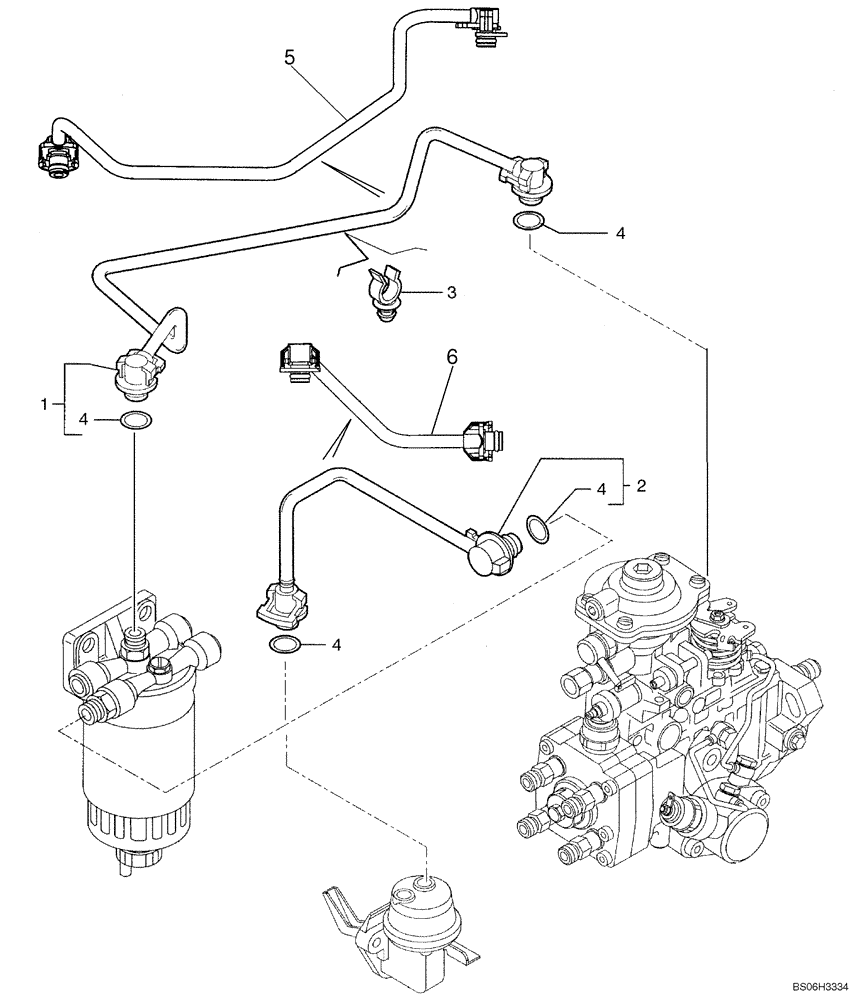

Запчасти Case 650K (03-12) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

REF

INSTRUCTION

With Stanadyne Fuel filter; If Used

1шт.

1

2855279

PIPE

Pipe Assy Fuel Supply, Incl. 4; Replaces 2854619

1шт.

2

2853243

PIPE

Pipe Assy Fuel Supply; Incl. Ref 4; Replaces 2854615

1шт.

3

2852111

CLIP

1шт.

4

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

REF

INSTRUCTION

With Filtrauto Fuel Filter; If Used

1шт.

5

2852105

TUBE

Incl. Ref 4

1шт.

6

2852108

RIGID TUBE

Incl. Ref 4

1шт.
