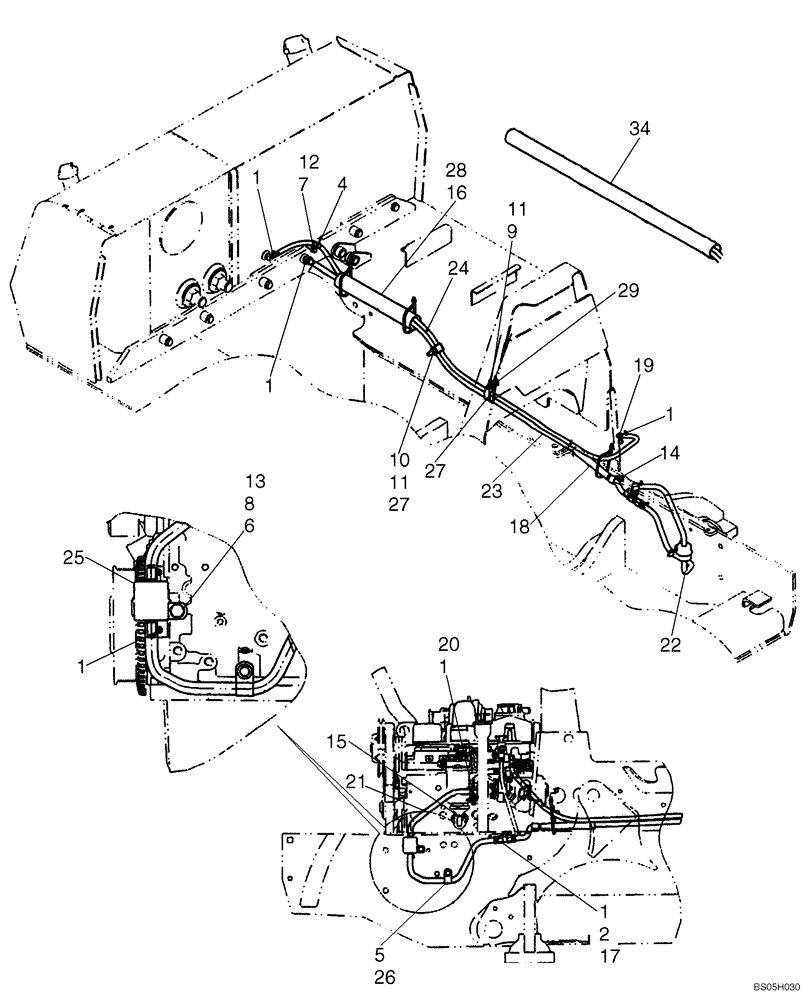

Запчасти Case 650K (03-05) - FUEL LINES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
214-1708
HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm
8шт.
2
217-168
FITTING,1/2" Hose Barb x 1/2" Male NPTF
2шт.
4
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
1шт.
5
515-25190
CLAMP,3/4", Insul, 1/2" Bolt
1шт.
6
515-25444
CLAMP,1 3/4", Insul, 7/16" Bolt
1шт.
7
614-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd
1шт.
8
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
1шт.
9
711-10050
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8
1шт.
10
814-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8
1шт.
11
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
12
892-11010
LOCK WASHER,M10
1шт.
13
892-11012
LOCK WASHER,M12
1шт.
14
87331700
CLAMP
1 dia, Replaces 49891
1шт.
15
8602557
FITTING,M12 x 1.5
1шт.
16
86983902
SLEEVE
450 mm (17-23/32 in), No Longer Used, Replaced With 87340827, Ref 34
1шт.
17
86984713
SHUT-OFF VALVE
Brass
1шт.
18
87310535
SLEEVE
200 mm
1шт.
19
87408919
FITTING
1шт.
20
87442270
FITTING
Includes 87445405 O-Ring
1шт.
87445405
O-RING
Not Illustrated
1шт.
21
87443906
FUEL HOSE,12.70 mm ID x 305.00 mm, SAE 30R2 or SAE 30R7
Supply; Cut From S118466X
1шт.
22
87443907
FUEL HOSE,12.70 mm ID x 450.00 mm, SAE 30R2 or SAE 30R7
Supply; Cut From S118466X
1шт.
23
87443908
FUEL HOSE,12.70 mm ID x 1815.00 mm, SAE 30R2 or SAE 30R7
Supply; Cut From S118466X
1шт.
24
87443910
FUEL HOSE,9.53 mm ID x 2185.00 mm, SAE 30R2 or SAE 30R7
Return; Cut From S118400X
1шт.
25
194199A1
FUEL FILTER
Fuel, In-Line
1шт.
26
605210R1
SPACER,1/2" X-Strng Pipe x 1 1/8"
1шт.
27
H434289
MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt
2шт.
28
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP 15"
1шт.
29
M42296
SPACER,1/2" X-Strng Pipe x 1/2"
If Used
1шт.
32
87331721
SLEEVE
635 mm, No Longer Used, Not Illustrated; Replaced With 87340827 Sleeve, REF 34
1шт.
33
87331727
SLEEVE
305 mm, No Longer Used, Not Illustrated; Replaced With 87340827 Sleeve, REF 34
1шт.
34
87340827
SLEEVE
1350 mm
1шт.
Выбрано товаров: 32
