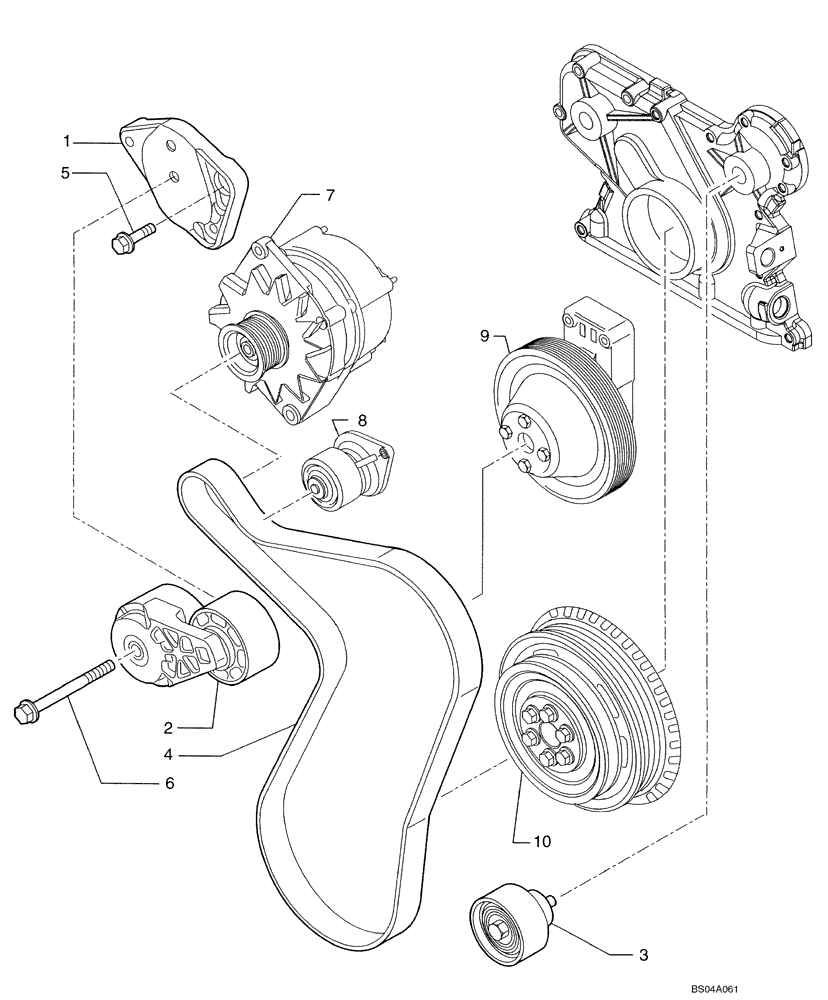

Запчасти Case 650K (02-38) - WATER PUMP - CONTROL (02) - ENGINE

1

2853230

BRACKET

Support Belt Tensioner

1шт.

2

2853206

BELT TENSIONER

, Serial Range: Alternate-2856172

1шт.

2

2856172

BELT TENSIONER

, Serial Range: Alternate-2853206

1шт.

3

2852245

PULLEY,65mm OD

1шт.

4

REF

INSTRUCTION

BELT; See Figure 02-02

1шт.

5

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

6

4899109

SCREW,Hex, M10 x 1.5 x 80

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02, 04-03

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-35

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-39

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-26

1шт.
