Запчасти Case 650K (02-36) - COOLING SYSTEM - ENGINE (02) - ENGINE

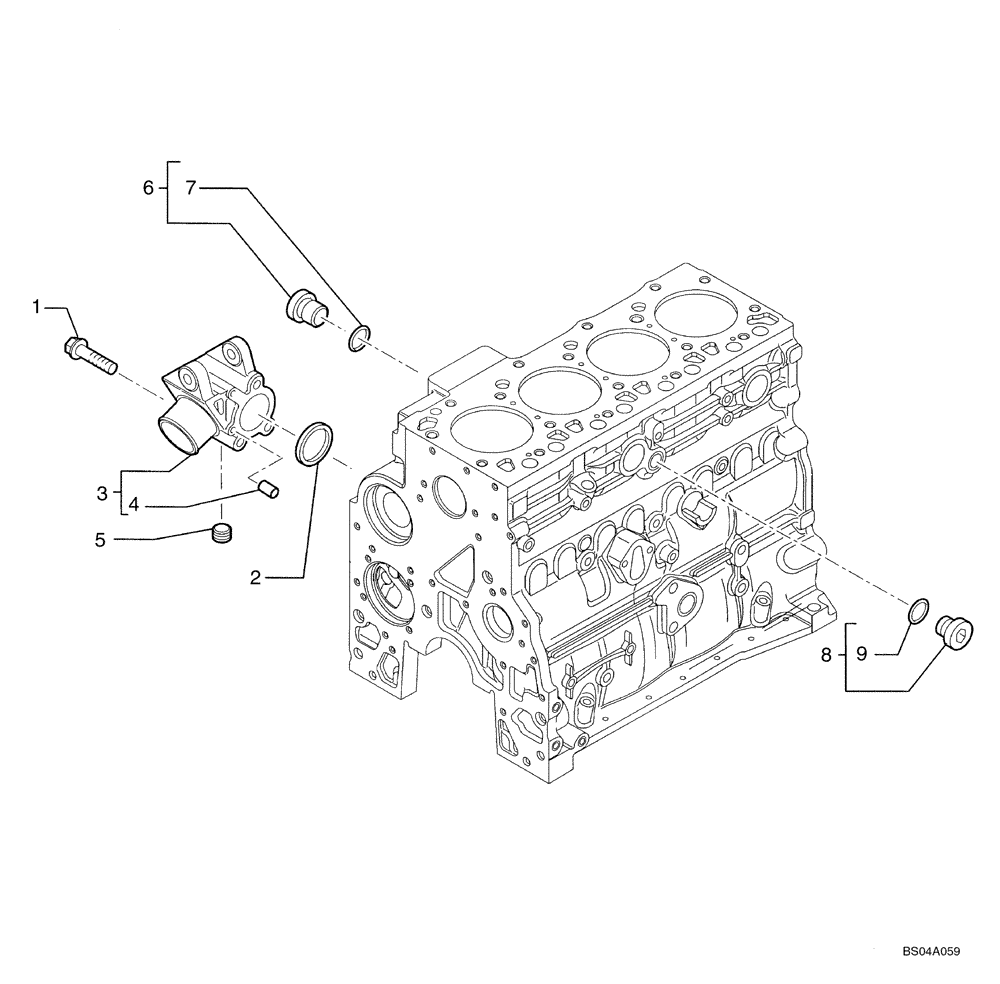

Схема запчастей Case 650K - (02-36) - COOLING SYSTEM - ENGINE (02) - ENGINE
7
6
2
4
3
1
9
8
5

Артикул

Название

Примечание

Количество

1

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

Replaces 4895121

1шт.

3

2852145

SUPPORT

Incl. Ref 4

1шт.

4

2830894

DOWEL,.25" OD x .625" L

2шт.

5

2852511

PLUG,R3/8" - 18 NPTF, M8, 12.7mm L

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

Torque Converter Oil; Incl. Ref 7

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

Compressor Plumbing; Incl. Ref 9

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

No Longer Available, Order 4895623 Threaded Plug Assy, Ref 8

1шт.

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

Not Illustrated

1шт.

Выбрано товаров: 10
