Запчасти Case 650K (02-34) - OIL FILTER AND COOLER (02) - ENGINE

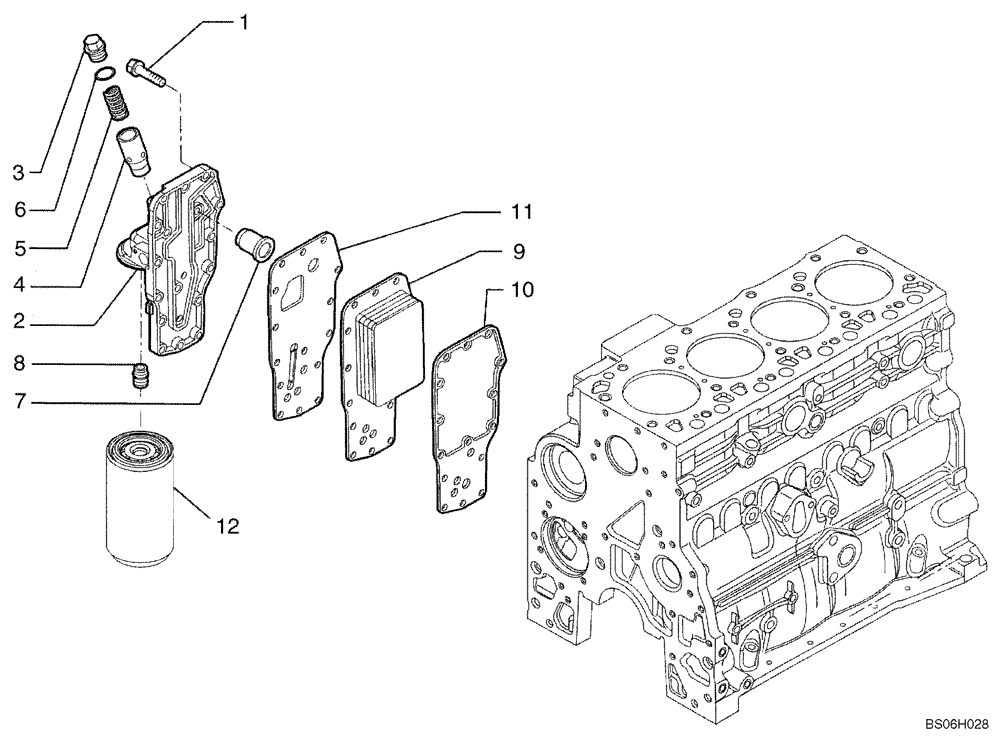

Схема запчастей Case 650K - (02-34) - OIL FILTER AND COOLER (02) - ENGINE
6
7
2
1
8
9
3
10
11
12
4
5

Артикул

Название

Примечание

Количество

4892774

FILTER HEAD

No Longer Available as Assembly; Order Ref 2, 3, 4- 7

1шт.

2853782

OIL COOLER

No Longer Available as Assembly; Order Ref 2, 3A, 4, 5, 7

1шт.

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2

4899643

FILTER HEAD

1шт.

3

4895043

PLUG

1шт.

3a

2853781

PLUG,Hex, M22 x 1.5 ORB

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Pressure Regulator

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

2853057

PLUG

Oil Filter

1шт.

8a

2853057

PLUG

1шт.

9

2853722

HEAT EXCHANGER

Replaces 4896406, Oil Cooler Core

1шт.

10

2830559

GASKET,0.5mm Thk

Core

1шт.

11

4896409

GASKET,1.55mm Thk

Head

1шт.

12

REF

INSTRUCTION

FILTER, ENGINE OIL; See Figure 02-32

1шт.

Выбрано товаров: 16
